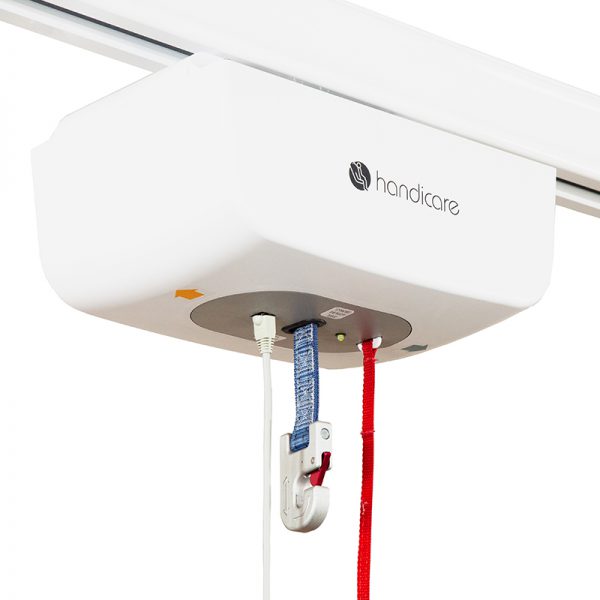

A-Series Ceiling Lift

Model / SKU: A-450 / A-625

Savaria Patient Care

Fixed ceiling lifts in 450 lb and 625 lb versions that build on the proven Handicare C-Series platform, adding antimicrobial materials, a 15-degree tilting design and a backlit LCD hand control with live diagnostics. The result is simpler transfers with better data at the caregiver's fingertips.

  • Two capacities: A-450 at 450 lb (204 kg) and A-625 at 625 lb (284 kg)
  • Antimicrobial lifting strap cuts infection risk, lasts longer and includes a visual replacement indicator
  • Waterproof, ergonomic hand control with backlit LCD showing control and diagnostic information
  • 15-degree tilt makes maneuvering the lift over the patient noticeably easier
  • Manual or power traversing with constant-charge and return-to-charge options

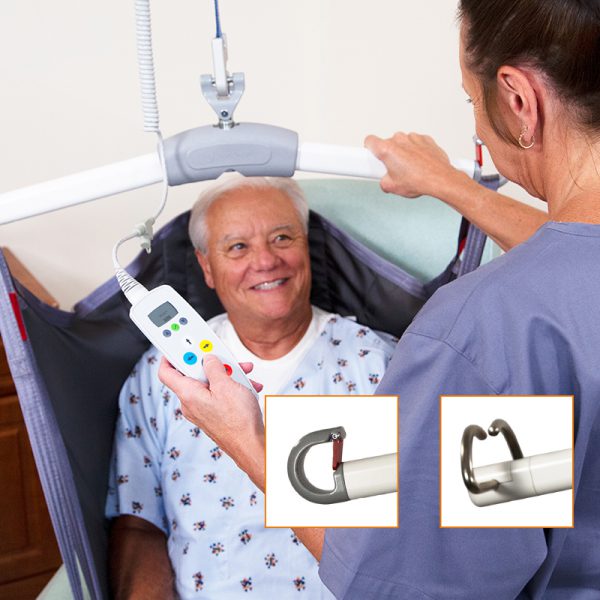

  • Quick Release System swaps carry bars in seconds, and the lift is serviceable right on the track
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Model variants Manual Traverse, Power Traverse, Power Traverse RTC, Power XY
Lift motor 24 VDC
Traverse / XY traverse motor 24 VDC (optional at time of purchase)
Charger Soneil 2403SRM20; input 100-240 VAC 1.5 A, 50-60 Hz; output 24 VDC 1.0 A
Batteries 24 VDC (2 x 12 VDC) 5.0 Ah, sealed lead-acid, UR/UL
Lift case Flame-retardant ABS
Hand control Pneumatic; main unit IP22
Lifting range Up to 96 in (2438 mm)
Lift weight 21-23.5 lb (9.5-10.65 kg)
Maximum safe working load 450 lb (204.5 kg) or 625 lb (284 kg) depending on model
Duty cycle 1 minute on, 9 minutes off
Max sound level 56.1 dB raising / 60.3 dB lowering at max load
Rated performance 50-60 lifts at 450 lb or 30-40 lifts at 625 lb per full battery (24 in lifts mid-range)
Service life 22,500 cycles or 10 years, whichever comes first
