Blake Geo-Matrix Silverback

Model: Silverback

Blake Medical

Blake's contoured wheelchair back shell, ordered by style, width, height and contour depth — the four choices combine into the exact model (e.g. M16SA). Mounting hardware sold separately.

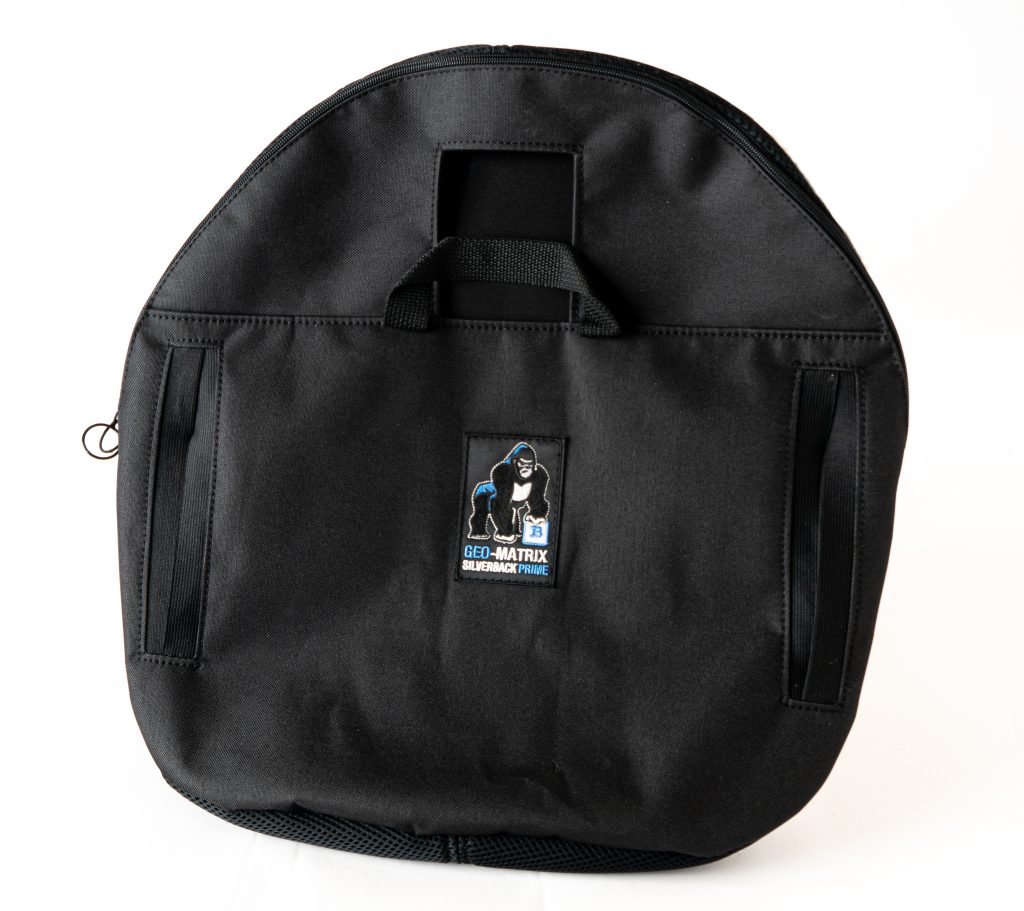

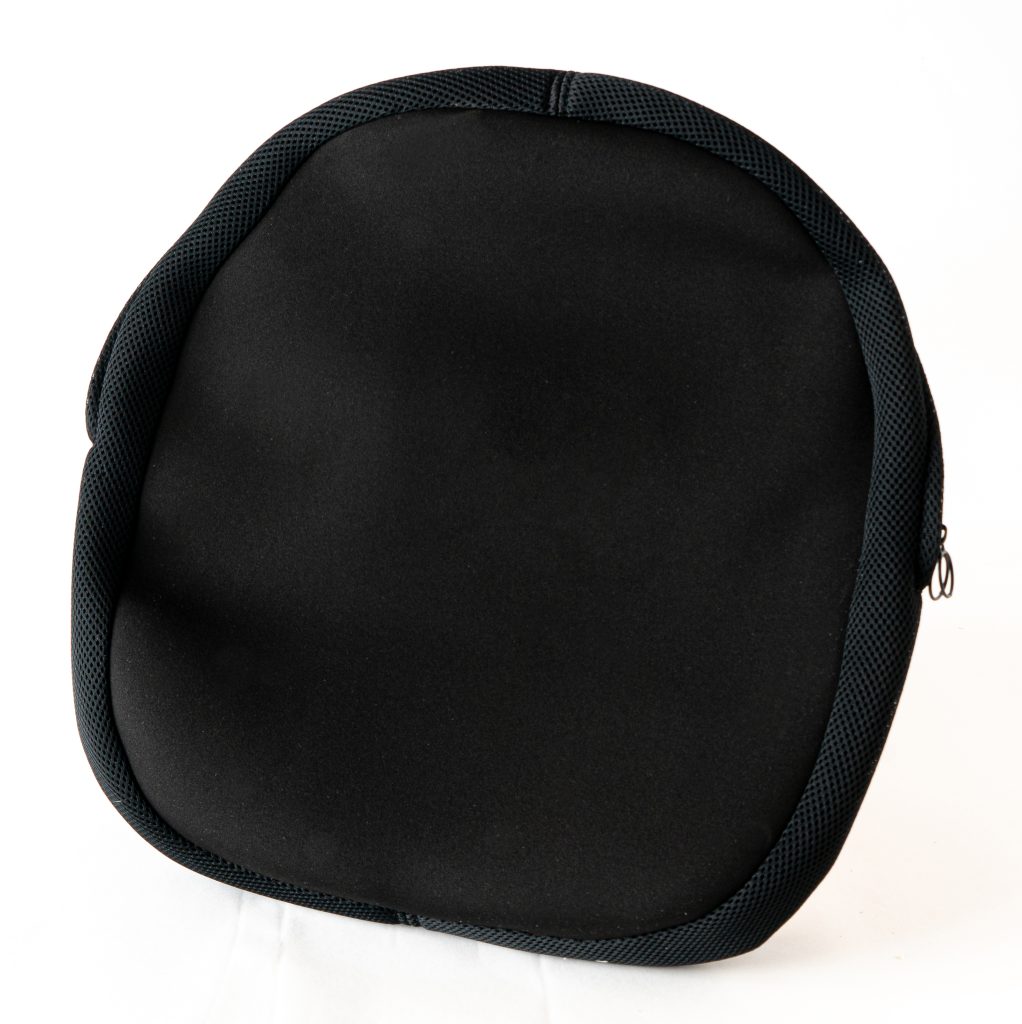

  • Prime: light shell back with a 3.75″-wide Pillow Top gel spinal strip running full height

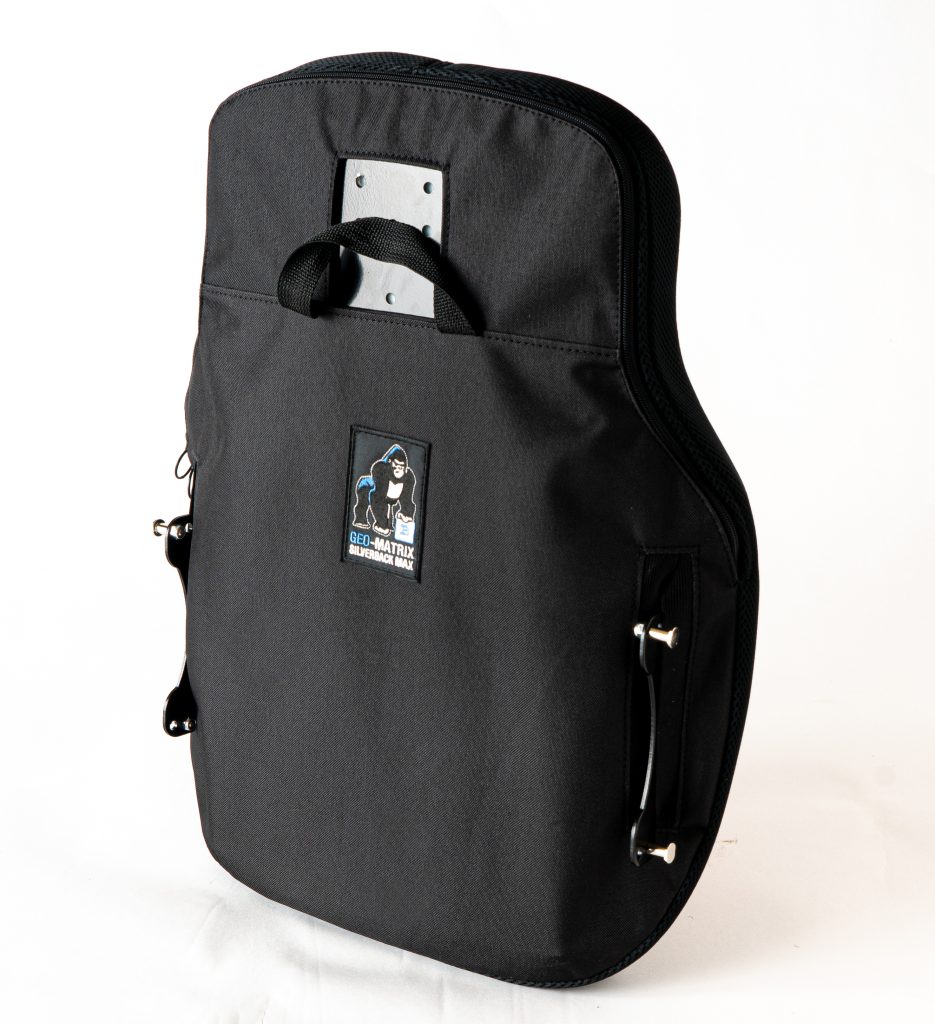

  • Max: extra gel layer over the whole face — top skin protection and vibration dampening for power and tilt chairs, helpful for kyphosis
  • Lite: lightest model, aluminum shell with 1.75″ gel-infused memory foam that sheds heat
  • Gel moves with the body in tilt and recline, cutting shear along the spinal column
  • Rated 250 lb at all tilt angles across the family
  • 27 standard size configurations per model (widths 14–22″; Standard/Tall/Extra-Tall heights; Active, Deep and Extra-Deep contours) plus full custom sizing
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Styles Prime, Max, Lite
Widths 14" to 22" (customs to 24" x 24")
Heights Standard 16", Tall 18", Extra Tall 20"

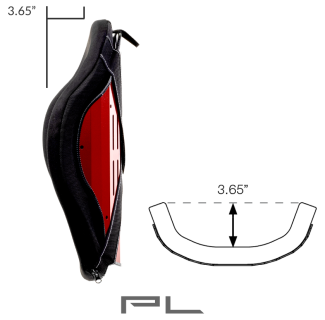

Contours Active 2 1/2", Deep 4", Extra Deep 6"
Hardware Full set SBHARDWARE; bracket set SBBS; mounting hardware SBMH

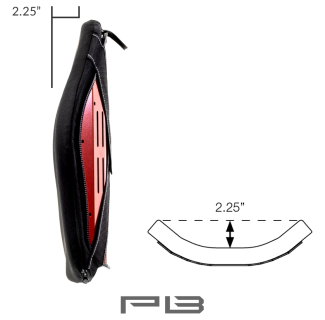

Construction — Prime 1.75″ foam with a full-height Pillow Top gel spinal insert 3.75″ wide; overall foam-and-gel thickness 2.5″

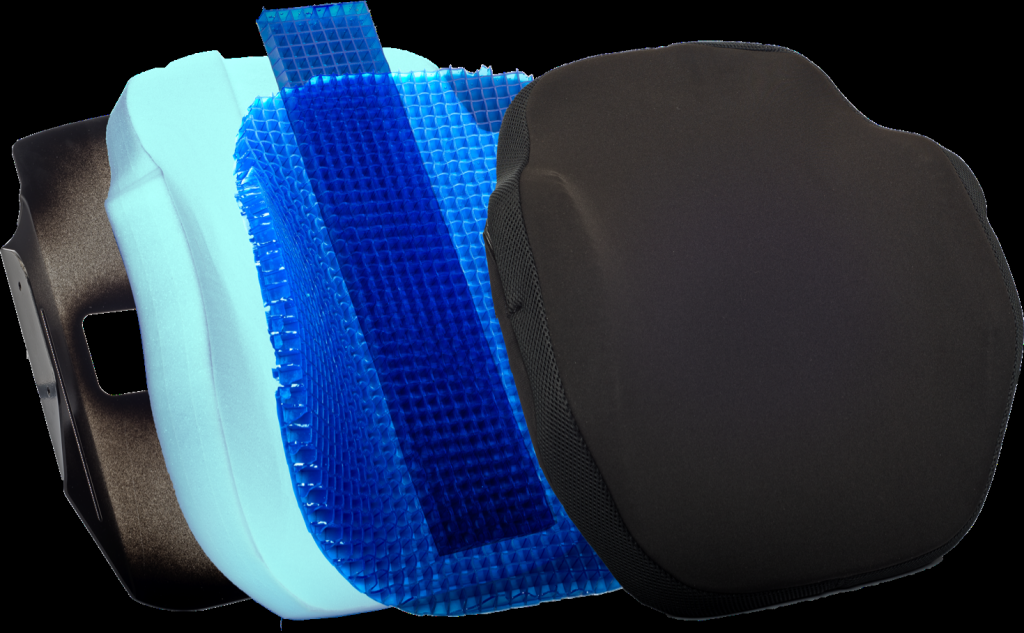

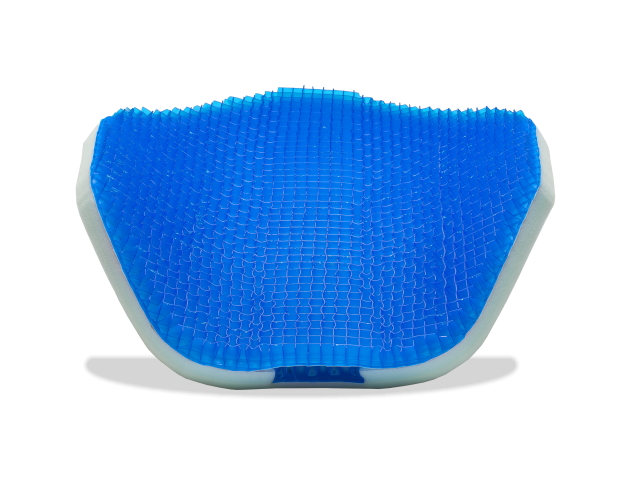

Construction — Max 1.25″ foam with a 3.75″-wide Blue gel spinal insert plus a full Pillow Top gel layer across the entire backrest face; overall thickness 2″

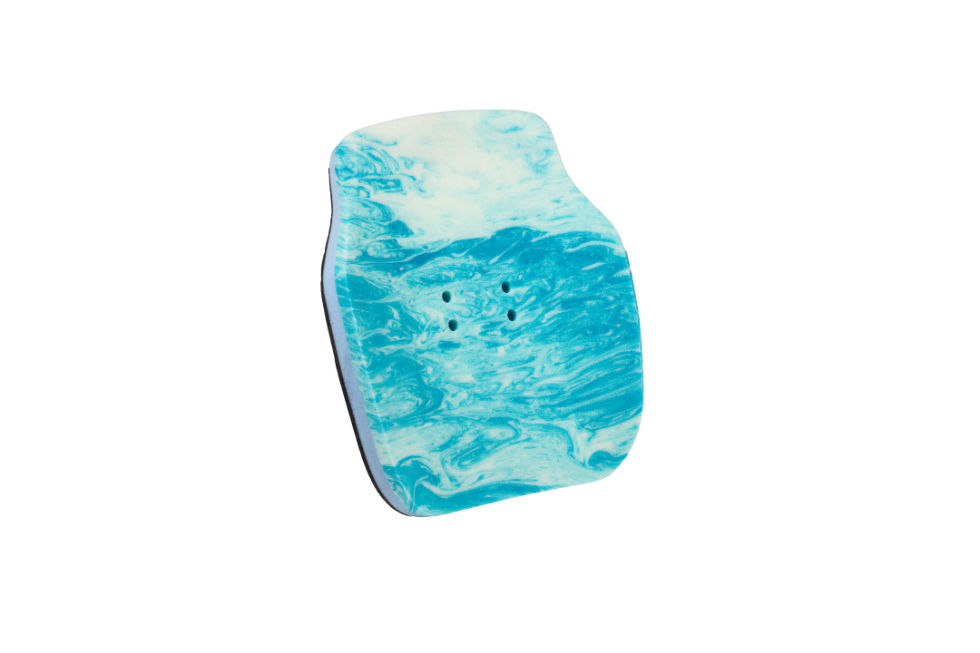

Construction — Lite Aluminum shell with 1.75″ gel-infused memory foam; thickness 1.75″
Covers Ultra-stretchy breathable fabric for immersion and temperature control; wipeable fabrics optional
Standard sizes 27 standard configurations per model — widths 14″–22″; heights Standard 16″, Tall 18″, Extra-Tall 20″; contours Active 2.5″, Deep 4″, Extra-Deep 6″
Custom sizes All height and width dimensions available
Weight capacity 250 lb at all degrees of tilt
Warranty 2-year limited on backrest, shell and hardware; 1-year limited on cover
