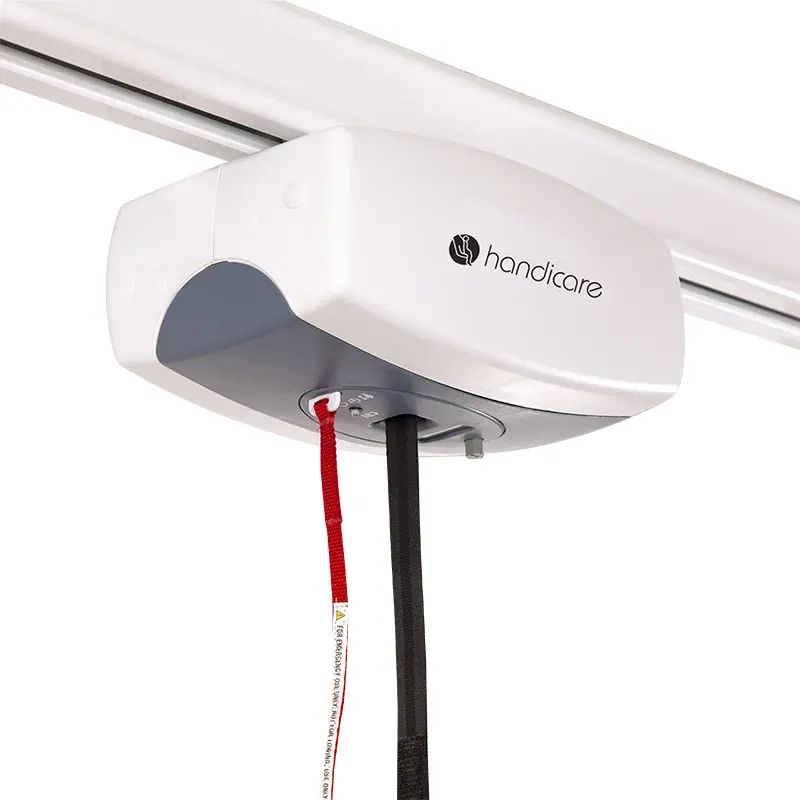

C-625 Fixed Ceiling Lift

Model / SKU: C-625

Savaria Patient Care

A quiet, compact fixed ceiling lift rated for 625 lb, with programmable features, a digital display and a modular design that keeps maintenance simple. Transfers stay smooth and effortless for both patient and caregiver.

  • 625 lb (284 kg) weight capacity with quick lifting speed
  • Engineered for notably quiet operation
  • Digital display shows lift counts, battery levels and lift status
  • At least 7 in (18 cm) of extra lifting height and 7.5 ft (2.2 m) of strap travel for floor pickups
  • Emergency stop, emergency power lowering and manual raise/lower backup
  • Manual or power traverse with an optional Return-to-Charge system
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Maximum safe working load 625 lb (284 kg)
Lift motor 24 VDC; traverse and XY traverse motors 24 VDC (optional)
Charger Soneil 2403SRM20; input 100-240 VAC 1.5 A, 50-60 Hz; output 24 VDC 1.0 A
Batteries 24 VDC (2 x 12 VDC) 5.0 Ah, sealed lead-acid, UR/UL
Lift case Flame-retardant ABS
Hand control Pneumatic; main unit IP22
Lifting range Up to 96 in (2438 mm)
Lift weight 21-23.5 lb (9.5-10.65 kg)
Duty cycle 1 minute on, 9 minutes off
Rated performance 30-40 lifts at 625 lb per full battery (24 in lifts mid-range)
Service life 22,500 cycles or 10 years, whichever comes first
Product codes 324201 Manual Traverse; 324203 Manual Traverse w/ Load Cell and Wi-Fi; 324205 Power Traverse w/ RTC; 324207 Power Traverse w/ RTC, Load Cell and Wi-Fi
