CARLO Alu Classic Floor Lift

Model / SKU: 924003208 / 924003008

Savaria Patient Care

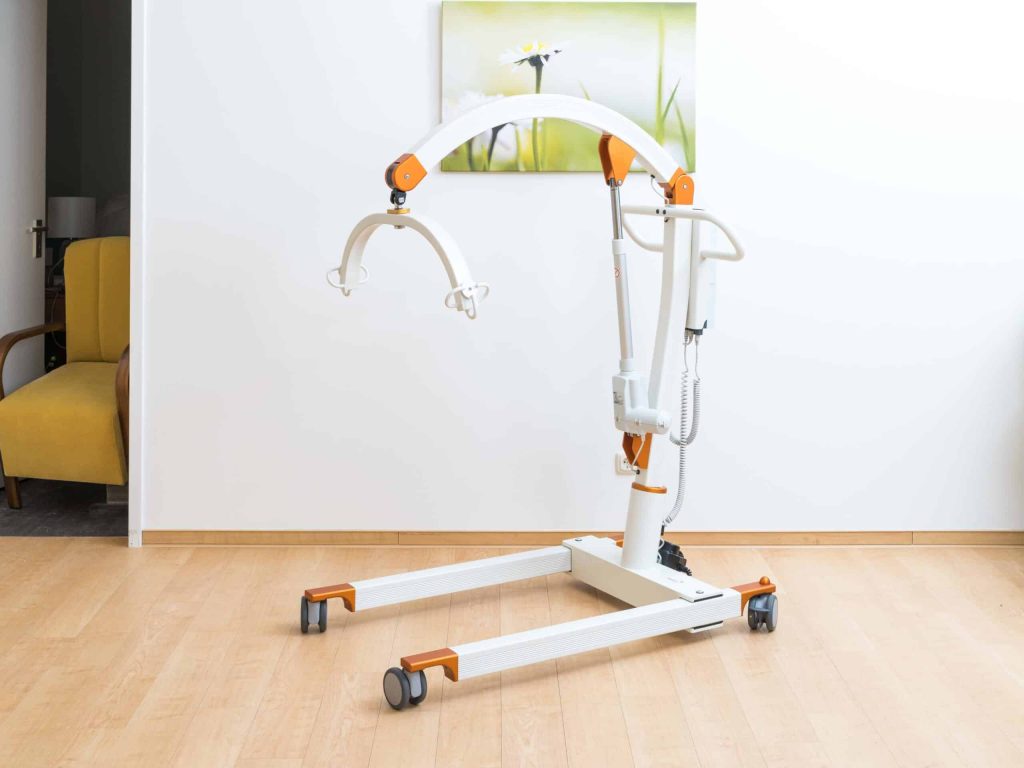

A full-body mobile floor lift built around an all-aluminum chassis and column, keeping the unit light enough for one caregiver to steer through resident rooms while still handling everyday lifting, repositioning and transfer work. Its six-point carry bar lowers right to floor level for post-fall recovery and features an anti-rotation mechanism that keeps the bar from swiveling unexpectedly mid-transfer.

  • Chassis, mast and components made entirely of aluminum for easy handling

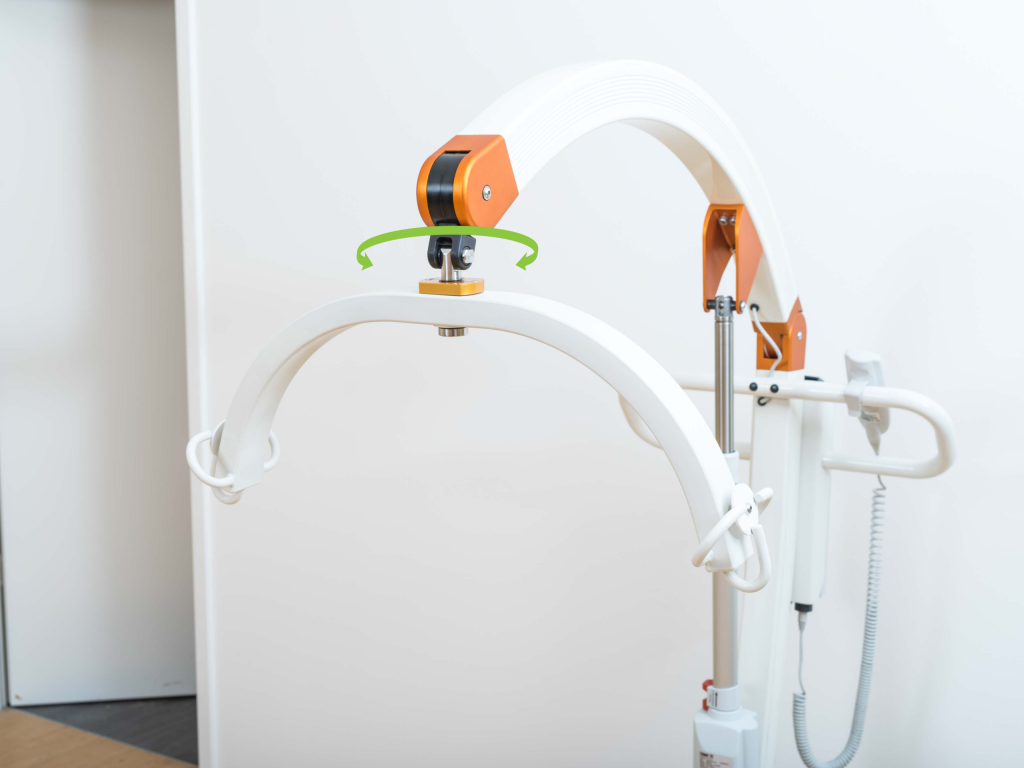

  • Six-point carry bar reaches the floor for lifting after slips and falls
  • Anti-rotation mechanism (ARM) with full 360-degree controlled rotation

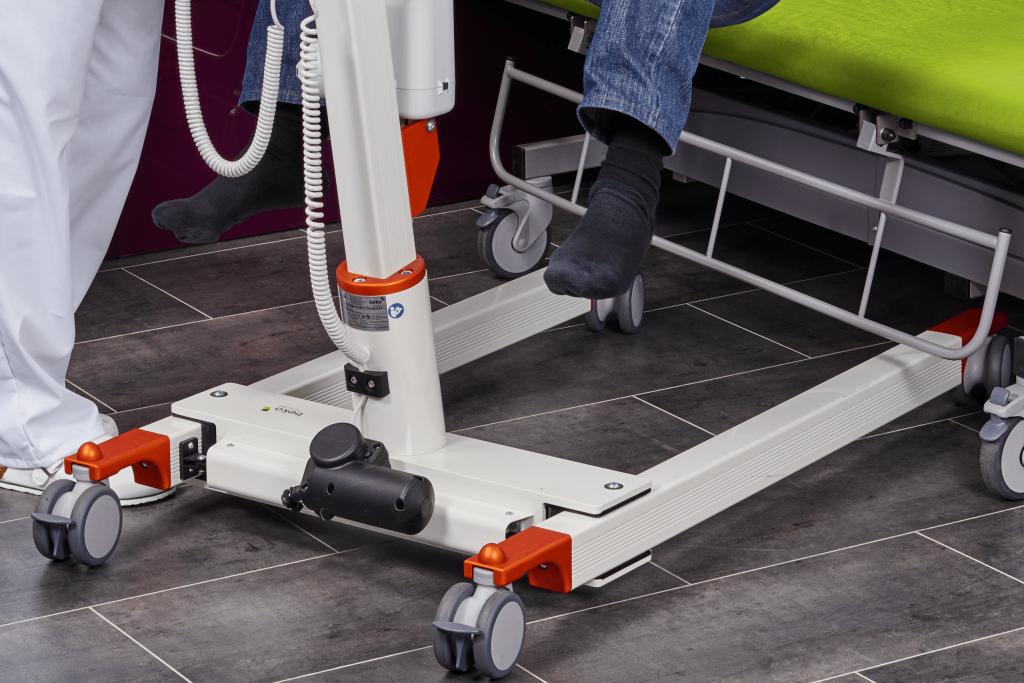

  • Electrically spreading legs slide under baths and low beds
  • Two safe-working-load builds: 185 kg (408 lb) and 230 kg (507 lb)
  • Optional calibrated patient scale weighs residents up to 250 kg (551 lb)
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Safe Working Load Classic: 185 kg (408 lb); Classic 230: 230 kg (507 lb)
Lifting Range 1,400 mm (55.12 in)
Carrier Frame (length / height) 1,290 mm / 125 mm (50.78 in / 4.92 in)
Inner Width (closed / spread) 540 mm / 1,040 mm (21.26 in / 40.94 in)
Outer Width (closed / spread) 700 mm / 1,180 mm (27.56 in / 46.46 in)
Drive 24V LINAK actuator
Battery 24V removable; 2.9 Ah
Low-Leg Option Available for lower beds, stretchers and furniture
Sling Compatibility Suitable for all loop slings
