Model / SKU: Jazzy Carbon HD
Pride MobilityWeighing 32 lbs. without batteries and roomy 20 x 20” seat, the Jazzy Carbon HD is a heavy-duty travel power wheelchair.
Added — view your quote list
Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.
Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

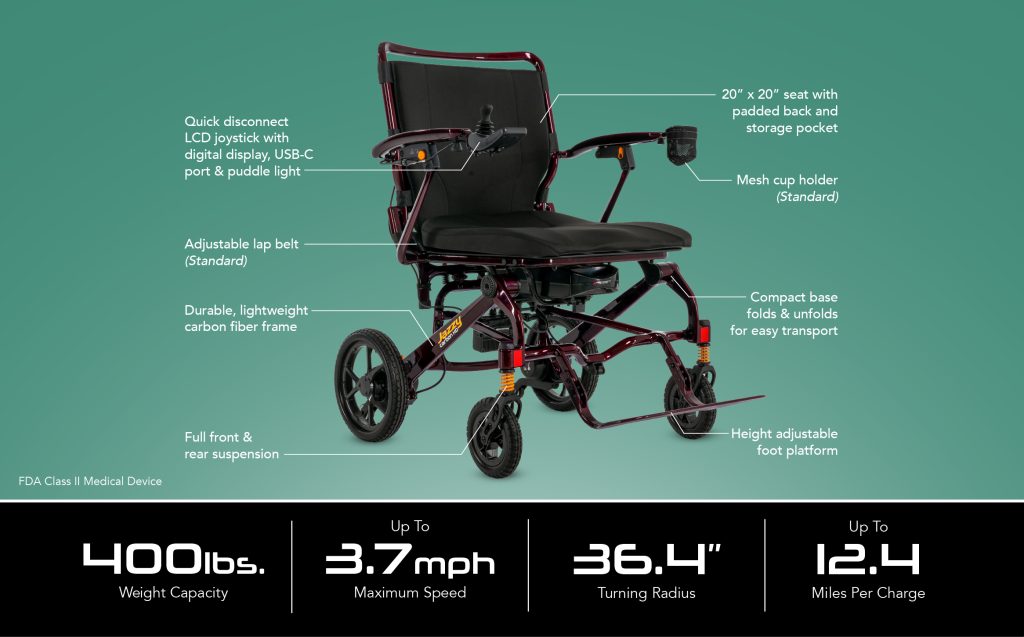

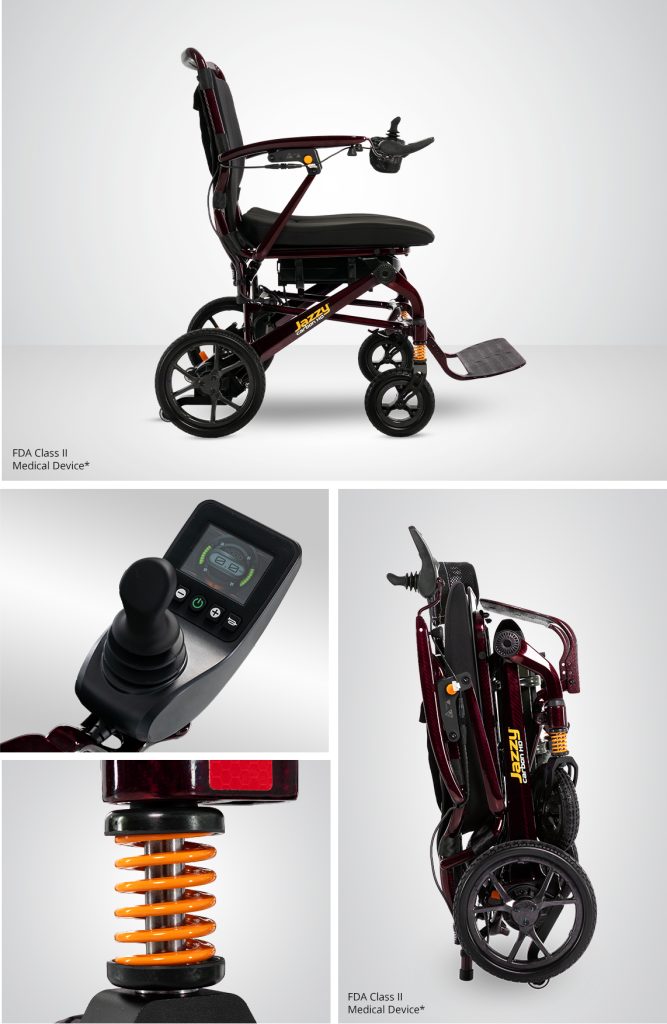

The Jazzy Carbon HD is a folding, battery‑powered travel wheelchair designed to combine bariatric‑level capacity with compact storage. It targets users who need more seat width and footplate space than the standard Jazzy Carbon models but still want something that folds for car and air travel. It folds and locks into position in seconds and will keep you comfortable with a padded seat back and extra-wide foot platform. It also has front and rear suspension providing a smooth ride over varied terrain.
| Folded Dimensions | 31.3" L x 26.4" W x 13" H |
|---|---|
| Colour | Black Cherry, Night Sky |
| Joystick Position | Left Handed Joystick, Right Handed Joystick |
| Weight Capacity | 400 lbs. (181 kg) |
| Product Weight (Total) | 39.7 lbs. (18 kg) |
| Battery Weight | 7.5 lbs. (3.4kg) |
| Top Speed | 3.7 mph (6 km/h) |
| Top Range | 12.4 miles (19.9 kms) |
| Seat Size | 20" x 20" Seat sling with removable cushion |
| Turning Radius | 36.4" |
| Ground Clearance | 1" at motor |
| Battery Requirements | 20 Ah Lithium battery box |
| Front Wheels | 6.5" |
| Rear Wheels | 10.6" |
| Battery Charger | 2 amp off-board charger |
| Warranty | Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited |
| Additional Battery Pack | 12ah Lithium-ion (airline approved) Additional Battery, No addition |
