Pride Jazzy Evo 613 Series Power Wheelchair

Model / SKU: SC0029

Pride Mobility

The AGM version uses sealed lead-acid batteries, while the Lithium version uses a lithium-iron phosphate battery pack.

Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Description

PRIDE JAZZY EVO 613 Li & U1 POWER WHEELCHAIR OVERVIEW


The Jazzy EVO 613 measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable. The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac Suspension and exclusive Mid-Wheel 6® Technology that provide you with a smoother, stable ride. The AGM version uses sealed lead-acid batteries, while the Lithium version uses a lithium-iron phosphate battery pack. Choose AGM/SLA if the goal is a lower upfront purchase price and the user is comfortable with a heavier chair and shorter range. Choose Lithium if you want easier handling, less battery weight, longer range, and less frequent charging

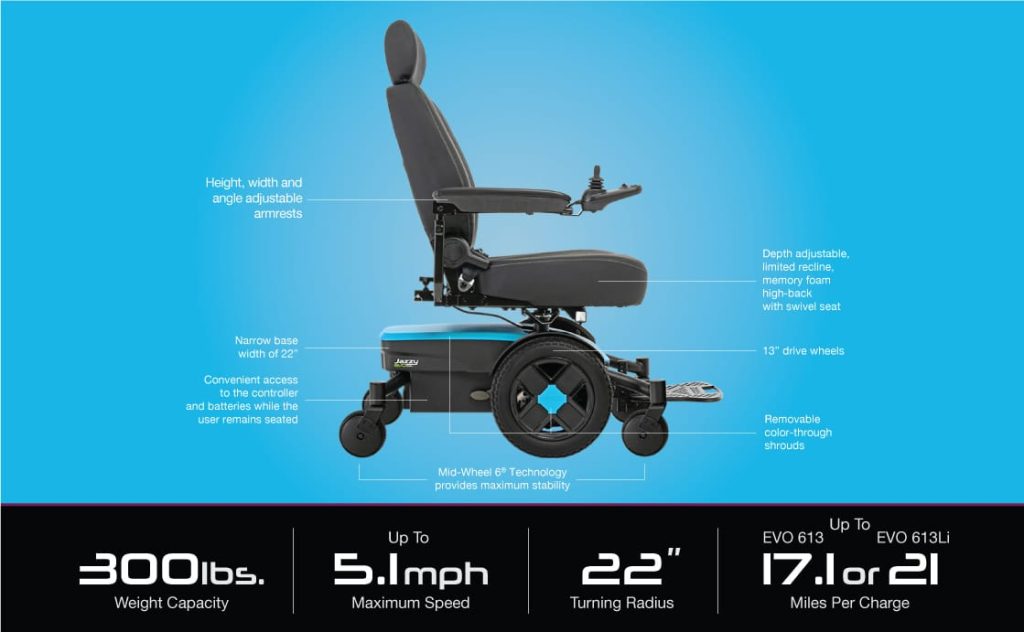

Features

  • 300 lb. weight capacity
  • Narrow base width of only 22″
  • Maximum speed up to 5.1 mph
  • 3″ Ground clearance
  • 13″ solid drive tires
  • Per charge range up to 17 miles with U1 AGM batteries and up to 21 miles with lithium ion (200 lbs.)
  • Mid-wheel 6 Technology offers tight turning radius around doorways and corners
  • Pride’s patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
  • Memory foam high-back seat with single seat post allows the user to swivel
  • Available depth-adjustable seat sizes: 16″ W x 16″-18″ D, 18″ W x 18″-20″ D, 20″ W x 18″-20″
  • Height, width, and angle adjustable armrests
  • Flip-up, height, angle, and depth adjustable foot platform
  • Removable matte-finish color-through shrouds

Specifications

Battery 32 Ah Lithium Battery, 32 Ah U1 AGM Battery
Colour Black (Matte), Iceberg Blue (Matte), Red (Matte), Robin's Egg (Matte), Sugarplum (Matte), White (Matte)
Weight Capacity 300 lbs. (136 kg)
Product Weight (Total) 189 lbs. (85.7 kg)
Battery Weight Lithium: 18.4 lbs., U1 Batteries: 25.2 lbs.
Top Speed 5.1 mph (8.2 km/h)
Top Range 14 miles (22.4 km)
Seat 16″W × 16″ Standard, 18″W × 18 Standard, 20″W × 18″ Standard
Turning Radius 22"
Ground Clearance 3"
Battery Requirements (2) 12 volt
Battery Charger 3.5A Off-board
Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium)
Joystick Position Left Swing-Away Joystick Mount, Right Swing-Away Joystick Mount
