Compare Home Lifts
We carry two Savaria through-floor lifts. The Luma is fully self-supporting, while the Telecab 17 anchors to a reinforced support wall and carries the most weight of any lift in the family. The chart below puts the two side by side — and if numbers aren't your thing, book an assessment and we'll match the lift to your home for you.
Two-Stop Home Lift Comparison Chart
| Luma | Telecab 17 | |
|---|---|---|
|
|
|
| Capacity | 400 lb (180 kg) | 845 lb (384 kg) |
| Minimum floor cut-out* | 38" x 47" | 35 1/4" x 60 1/2" |
| Max cab size | 29" x 27 3/4" | 36" x 54" |
| Cab height | 78 3/4" | 80" |
| Max travel distance | 13' | 23' |
| Support system | Self-supporting | Requires support wall |
| One Touch Alert | Standard | Optional |
| Wheelchair accessible | — | Yes |
| Speed | 13 fpm | 20 fpm |
| Drive | Winding drum | Hydraulic |
| Entry/exit types | 1, 2 | 5 |
| Other | — | Largest capacity |
| Emergency service | Battery powered — keeps running for several up/down trips during a power failure | Manual lowering mechanism, with optional battery back-up system available |
*For the smallest cab size. Specifications may vary by configuration — confirmed during your in-home assessment.
Through-floor lift configurations
Luma Lift
Telecab 17

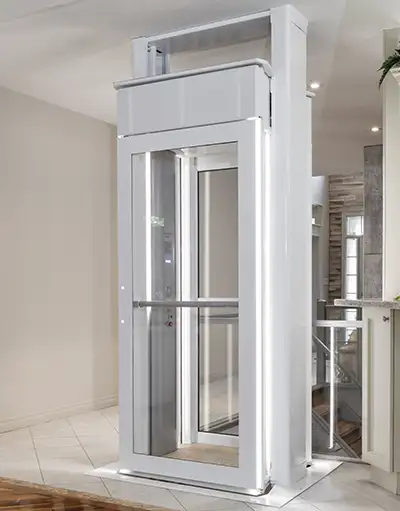

Luma Through-Floor Lift
