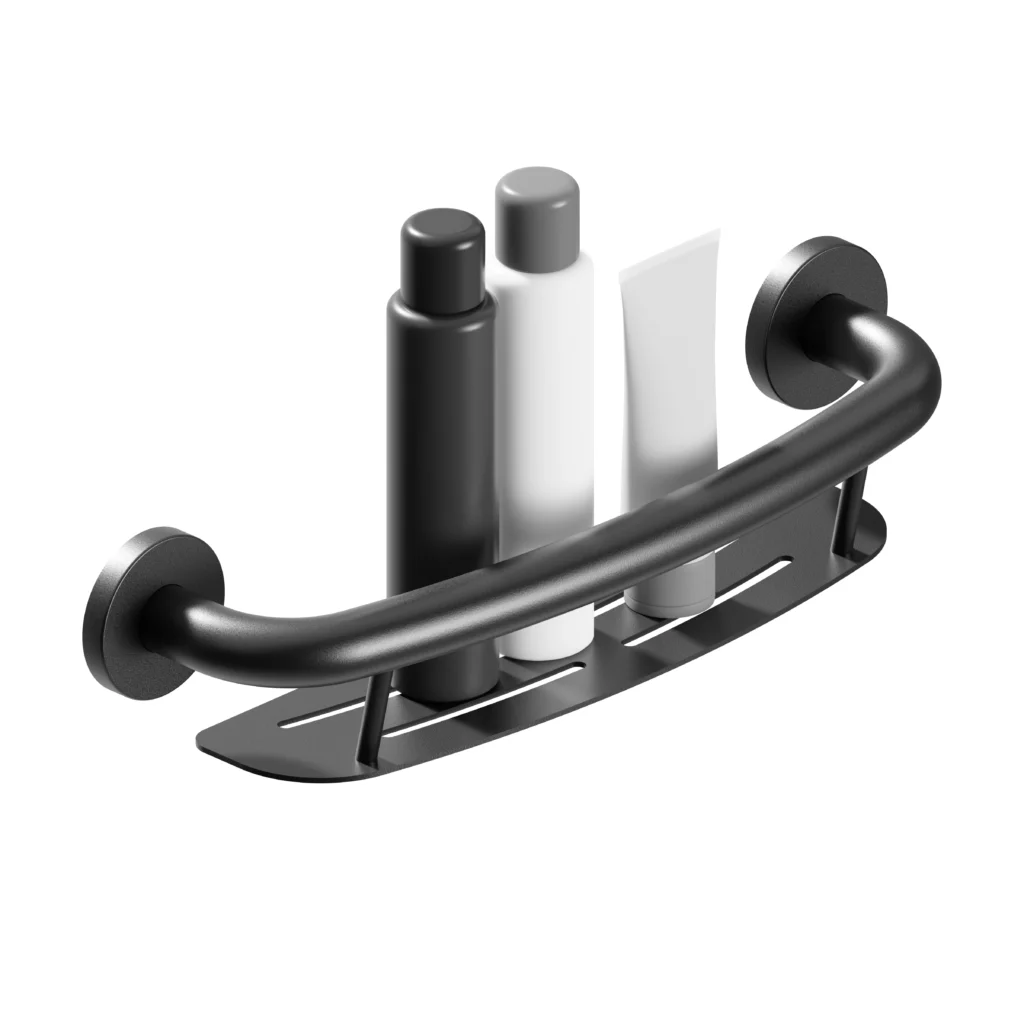

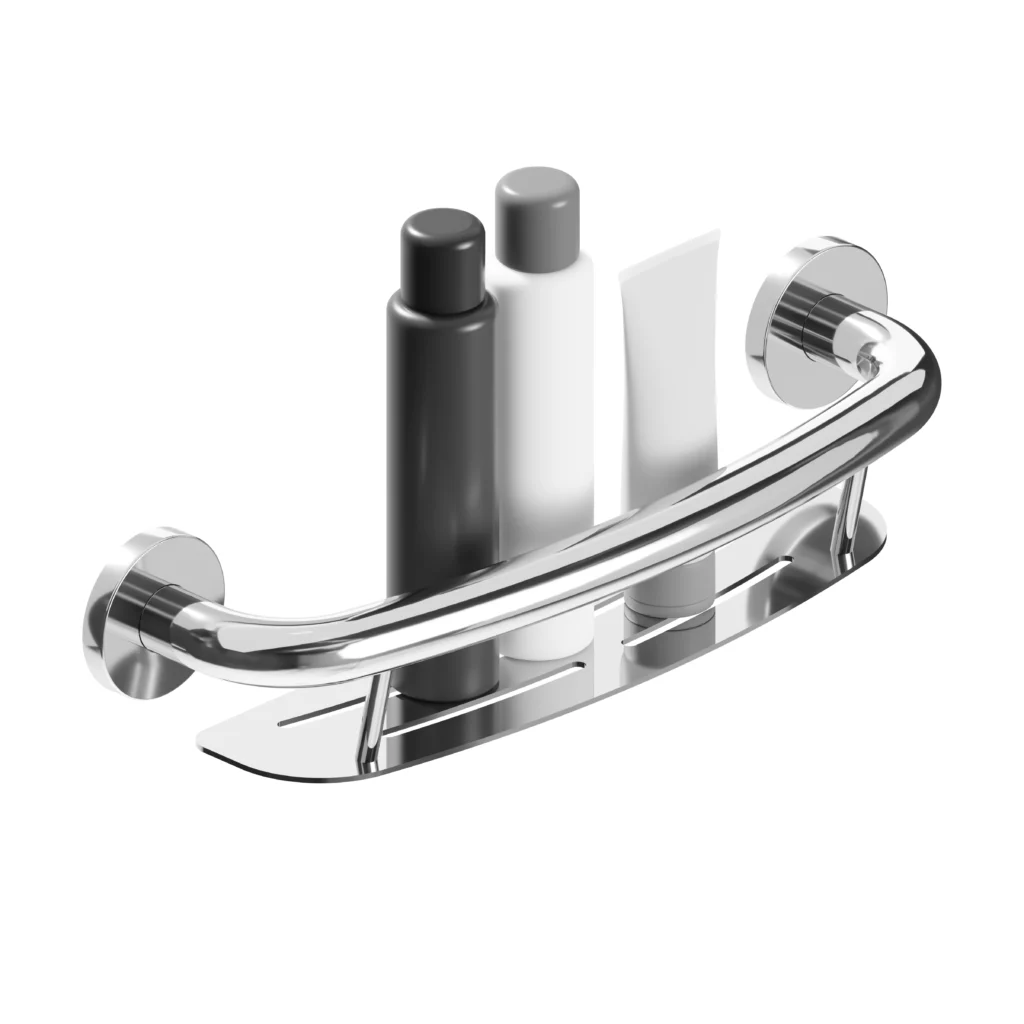

Plus Shampoo Shelf Grab Bar

Description

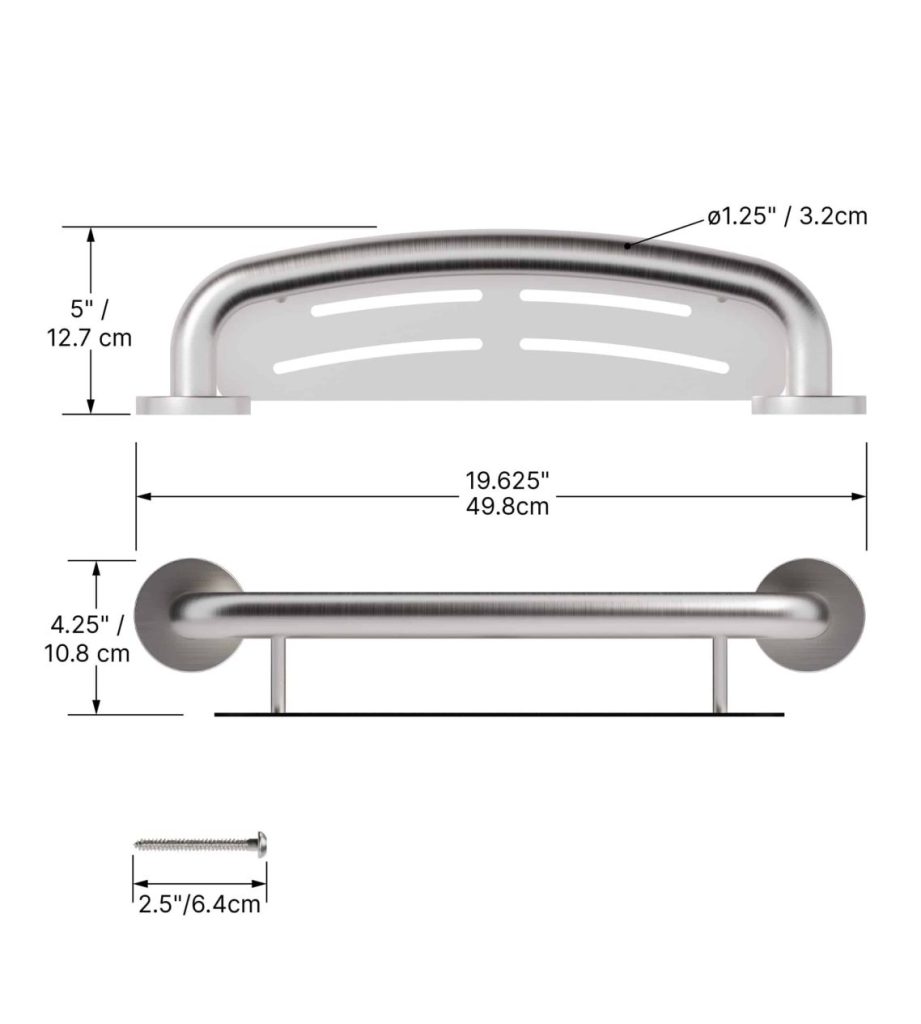

The Shampoo Shelf Grab Bar is capable of supporting up to 500 lbs., and its integrated drainage slots prevent water and soap buildup, ensuring a clean and dry surface. The 9-hole flanges, spaced on 16-inch centers, facilitate installation, and the included flange covers conceal mounting screws for a polished appearance.

For installations where wall studs are not accessible, consider using Easy Mount Hollow Wall Anchors, which allow secure attachment without the need for studs.

​ To install the Plus Series Shampoo Shelf Grab Bar, follow these steps: ​

• Select the Installation Location:

  • Choose a suitable spot in your shower or bathroom where the shelf will be both functional and accessible. ​

  • Ensure the location aligns with wall studs spaced 16 inches apart for support. ​

• Locate and Mark Wall Studs:

  • Use a stud finder to identify the positions of the wall studs. ​

  • Mark the stud locations with a pencil at the desired height for the shelf. ​

• Position the Shelf:

  • Align the shelf’s 9-hole flanges with the marked stud locations, ensuring it is level. ​

  • Mark the positions of the screw holes on the wall. ​

• Drill Pilot Holes:

  • At the marked positions, drill pilot holes into the wall studs to facilitate screw installation. ​

• Attach the Shelf:

  • Position the shelf against the wall, aligning the flanges with the pilot holes. ​

  • Secure the shelf to the wall studs using the provided screws, tightening them firmly. ​

• Conceal Mounting Hardware:

  • Slide the flange covers over the mounting flanges to hide the screws, giving the installation a clean and finished look. ​

• Verify Stability:

  • Apply pressure to the shelf to ensure it is securely mounted and capable of supporting weight as intended.

Specifications
