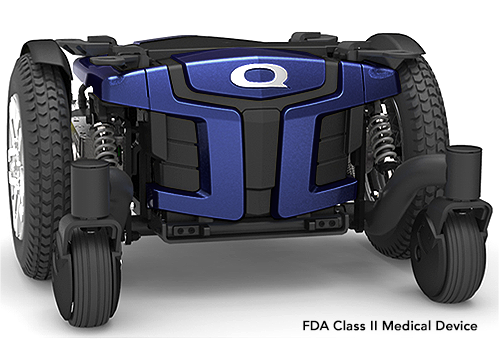

Quantum Q6 Edge HD Power Wheelchair

Model / SKU: Q6 Edge HD

Quantum Rehab

Heavy-duty mid-wheel-drive power base rated to 450 lb, with standard 4-pole motors, Mid-Wheel 6 design, and ATX Suspension. Accepts TRU-Balance 3 HD seating up to 32 in. wide and optional 10 in. iLevel elevation at 400 lb capacity.

  • 450 lb weight capacity (400 lb with iLevel)
  • Standard 4-pole motors
  • Mid-Wheel 6 design keeps six wheels on the ground
  • ATX Suspension with front OMNI-Casters and semi-independent rear caster beam
  • 19.75 in. turning radius
  • Optional iLevel with up to 10 in. of elevation at up to 3.5 mph
  • TRU-Balance 3 HD seating from 20 to 32 in. wide
  • Medicare Group 3 heavy-duty coded base (K0850/K0851)
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Call For Assistance 519 904 4932 Or request a quote by email

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Description

The Q6 Edge HD serves bariatric complex rehab users who need a 450 lb weight capacity without giving up mid-wheel-drive maneuverability, and gives clinicians a Group 3 heavy-duty platform (K0850/K0851) with full power positioning support. TRU-Balance 3 HD seating fits widths from 20 to 32 in. and depths to 28 in., and Q-Logic electronics up to 120A support expandable and alternative drive controls.

Standard 4-pole motors and the Mid-Wheel 6 design keep six wheels on the ground for stability, while ATX Suspension with front OMNI-Casters and a semi-independent rear caster beam handles varied terrain and prevents wheel hang-ups. Despite the heavy-duty rating, the base turns in 19.75 in., and optional iLevel provides up to 10 in. of seat elevation at walking speed with a 400 lb capacity.

Specifications

Weight capacity 450 lb; 400 lb with iLevel
Top speed Up to 4.7 mph
Drive wheels 14 in. flat-free (pneumatic or knobby optional)
Caster wheels 6 in. solid OMNI-Casters, front and rear
Base width 26.25 in.
Overall length 35.6 in. (without foot riggings)
Turning radius 19.75 in. (without front riggings)
Ground clearance 3 in. (frame center)
Battery size Group 24 (52 lb each)
Motor package 4-pole, 4.7 mph
Suspension ATX Suspension (Active-Trac with extra stability)
Electronics 120A Q-Logic 3 EX/3e or 75A Q-Logic NE/NE+
Seating compatibility TRU-Balance 3 HD, widths 20-32 in., depths 20-28 in.; iLevel with 20x20 in. to 24x25 in. seating
Base weight 143.5 lb
Battery charger 8A off-board
Medicare coverage Group 3 Heavy Duty (K0850/K0851)
