Handicare 4000 Curved Stairlift
Twin-rail flexibility for turns, spirals and landings
A custom twin-rail stairlift built for curved, spiral, and multi-landing staircases. Each rail is measured and fabricated for the home, with 90 and 180 degree parking, powered swivel and footrest options, an outdoor version, and capacity up to 350 lb with the heavy-duty rail.
Or call 519 904 4932
A twin-rail design for a tight fit
Hugs bends, curves and landings
The 4000's double rail bends tightly to follow the wall around corners and pie-shaped steps, keeping the staircase as open as possible u2014 with parking configurations that tuck the chair away past the last step.

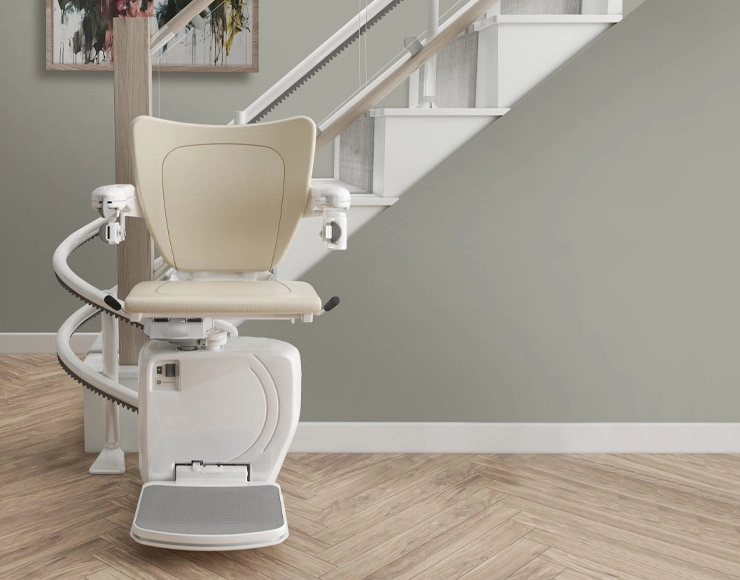

Handicare 4000 Stairlift

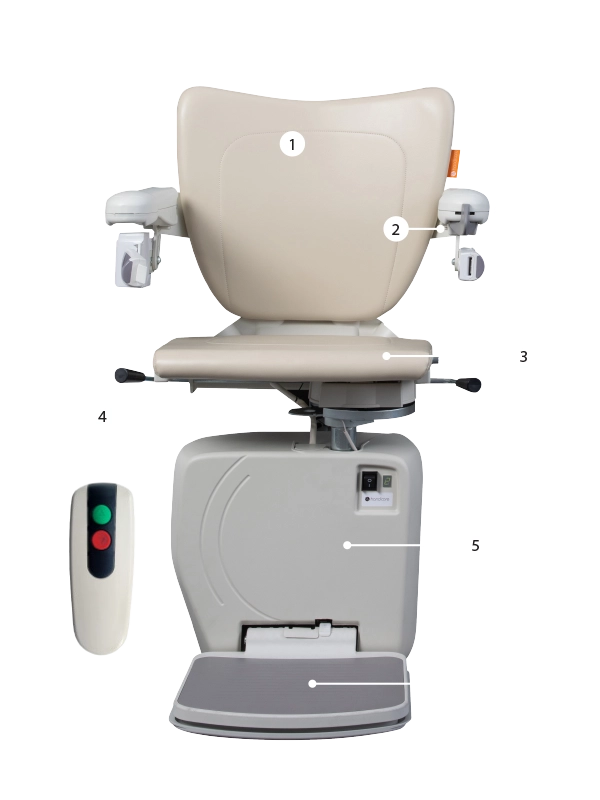

Standard features and finish
- Custom twin rail fabricated in North America to your exact measurements
- Choice of Simplicity, Style, Smart, Perch and Outdoor seats

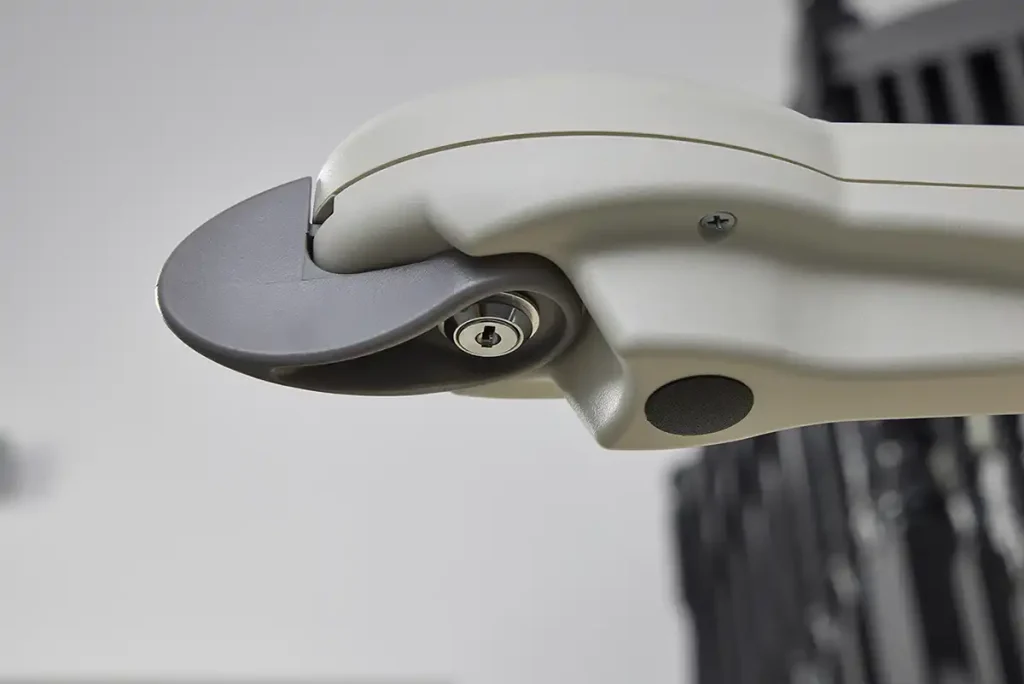

- Armrest toggle control with two remote controls included
- Retractable seat belt, emergency stop, keyed switch and obstruction sensors
- Battery powered with charging stations at the top and bottom landings
The Handicare 4000 is our go-to curved stairlift for staircases that turn, spiral, or span multiple landings. Its twin-rail system can be bent tightly, so it follows sharp corners closely and can park around a bend at 90 or 180 degrees, leaving the staircase itself clear.

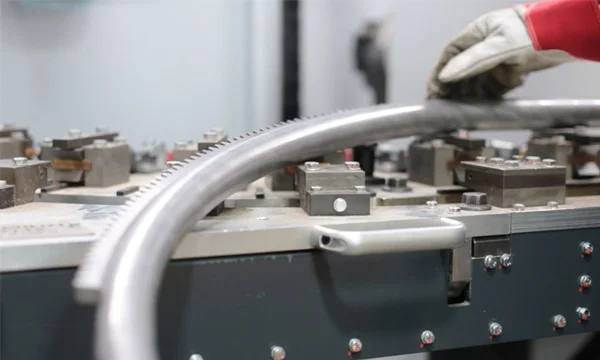

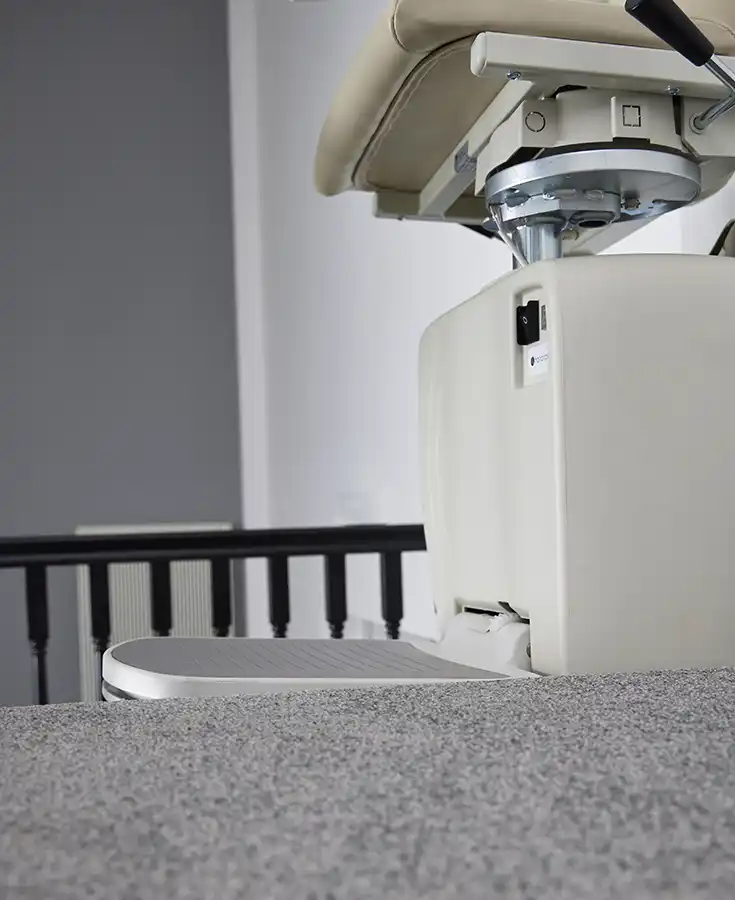

Every rail is custom fabricated from photo-based measurements of the actual staircase, and can be finished in light grey, black, or brown to sit quietly against the decor. The battery-powered rack-and-pinion drive charges at stations at the top and bottom of the run and keeps working through a power outage, covering travel up to 49 feet.
Riders choose from Simplicity, Style, and Smart seats, a Perch seat for a semi-standing position, or the outdoor seat — with a heavy-duty rail option raising capacity from 300 to 350 lb. Powered swivel, powered folding footrest, and a powered folding hinge remove the bending and turning that riders often find hardest.

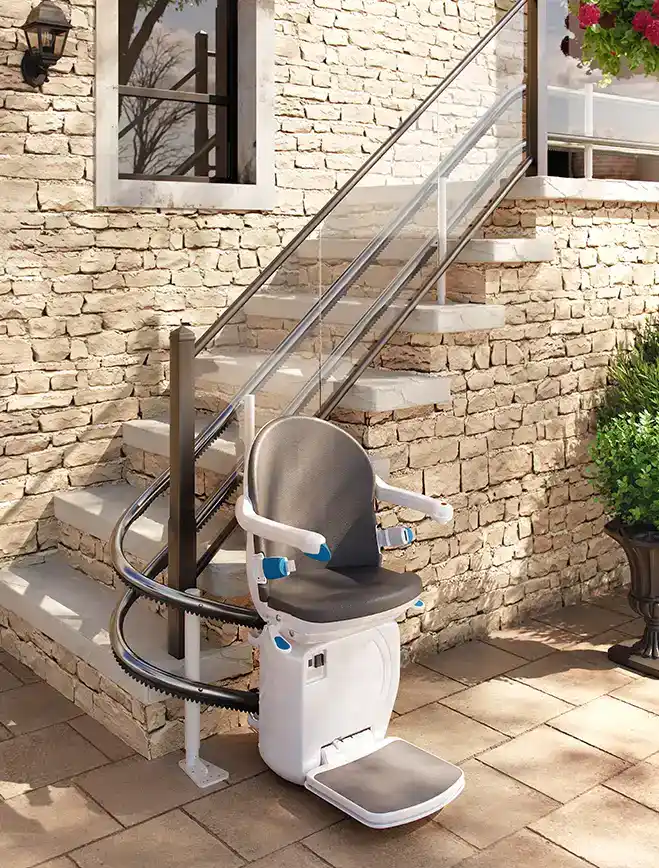

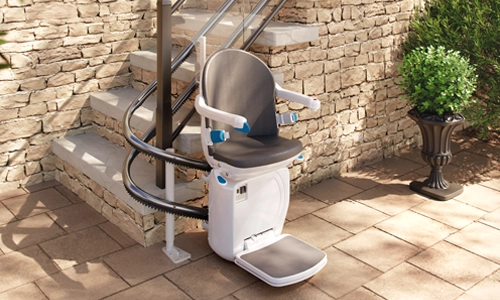

An outdoor version with nickel-plated rails and stainless hardware brings the same custom fit to exterior curved steps in moderate climates. We photograph and measure the staircase on site, then have the rail fabricated to match before installation.
Additional Options
Power Footrest
No bending down u2014 the footrest folds and unfolds from the toggle switch.
Power Swivel
The seat turns at the top landing using the toggle, rather than the manual swivel handle.

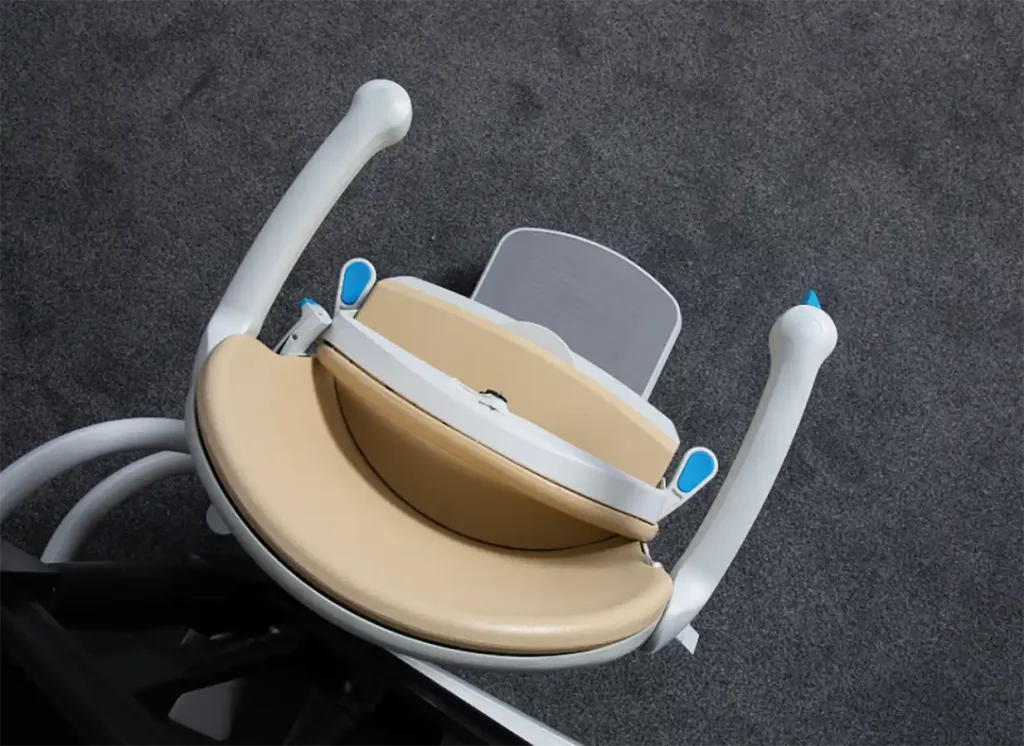

Power Hinge
Keeps the bottom landing free of tripping hazards when a doorway sits at the base of the stairs.
Perch Seat
A raised, semi-standing seat for riders with knee or hip limitations.
5 Point Harness
Available for added security while riding the chair.

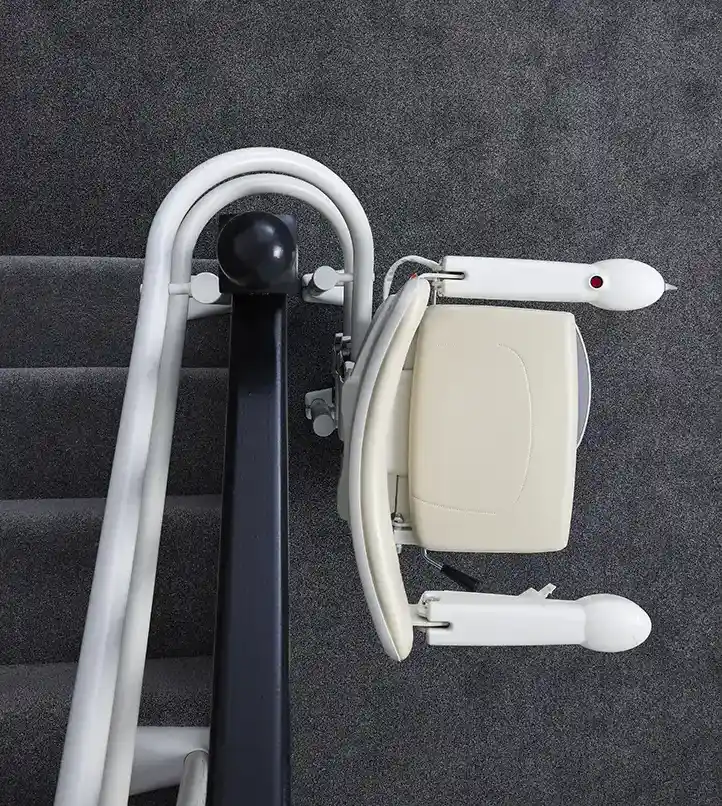

Parking

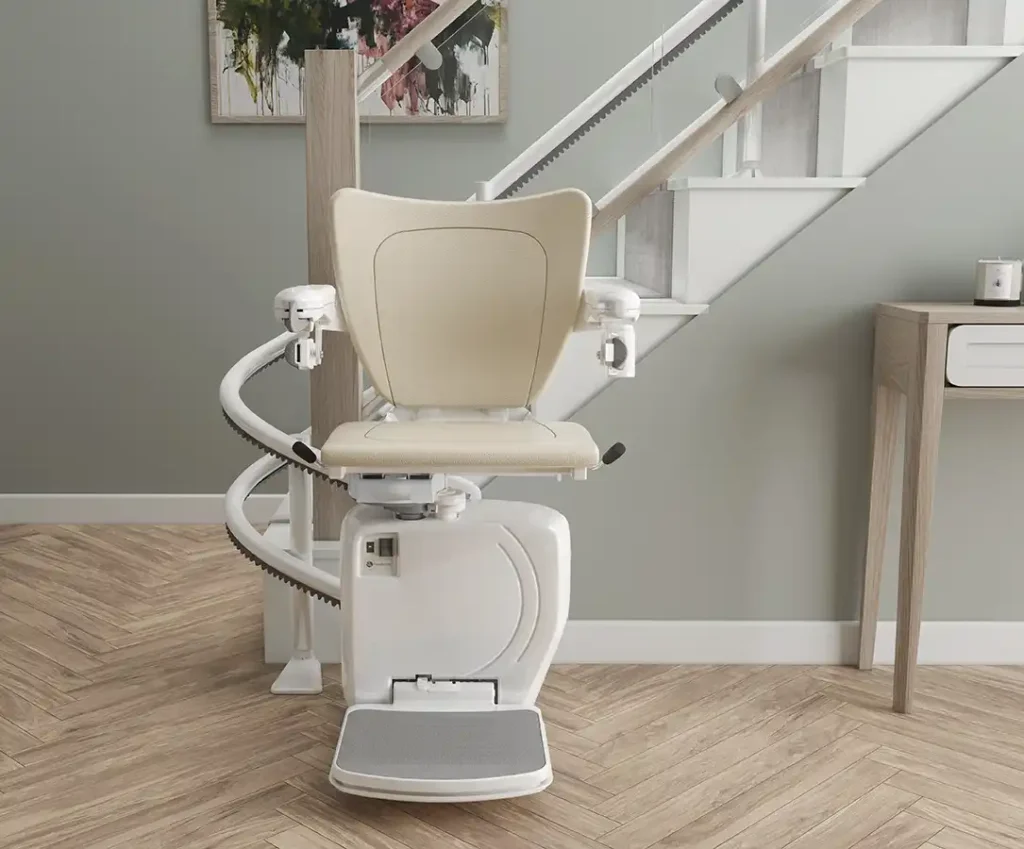

90- or 180-degree parking tucks the chair around the railing at the top, bottom or both landings.

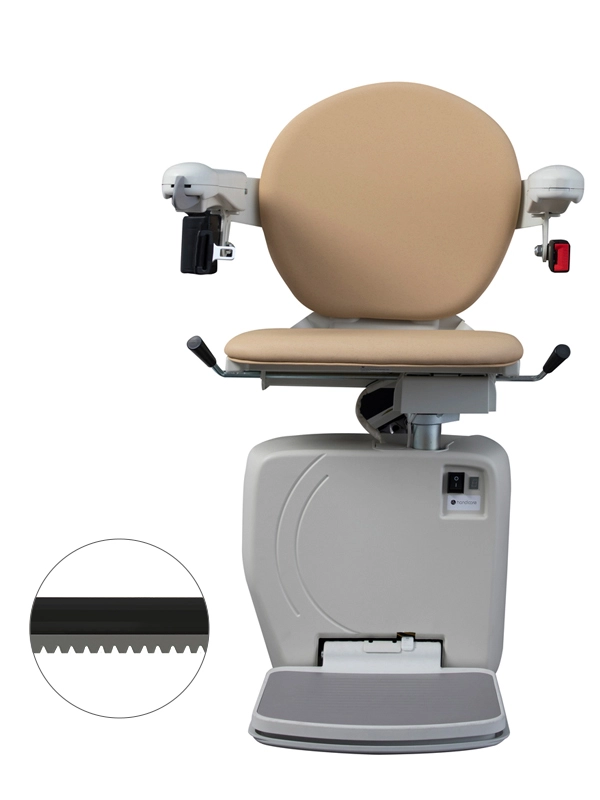

4000 Seat Options
The Handicare 4000 offers a choice of 5 seat designs, several with vinyl colour options.
- Simplicity seat in sand
- Style seat in vanilla
- Smart seat in cacao, sand or slate
- Perch seat in cacao, sand or slate
- Outdoor seat in slate
- Standard rail is grey u2014 black and brown optional
Choose a Seat Type
Choose a Seat Colour
Rail Colour
See it before you buy!
We visit your home, assess the staircase and take precision photo measurements with the Savaria PS4D system. Ask to see the Handicare 4000 on your own staircase in 3D — before you place the order.
Learn More
Handicare 4000 Specifications
Applications
Residential, indoor, outdoor (moderate climates)
Standard capacity
300 lb (136 kg); optional 350 lb (160 kg)
Nominal speed
23 ft/min (0.12 m/s); 12 ft/min (0.06 m/s) through curves
Drive
Rack and pinion
Motor
0.6 hp, 24V (DC) power that charges on standard household power
Fold-up depth
16" (405 mm)
Fold-out depth
27.4" (695 mm); 25.75" (655 mm) with offset footrest
Range of incline
0° to 56°
Warranty
24 months parts and limited lifetime on rail and powertrain.*
Dimensions taken at level landing; all dimensions can vary slightly with site installation.
*Please see the full details of the Savaria warranty, including the requirement for regular maintenance.
Safety features
- Obstacle sensors on footrest and carriage
- Overspeed brake
- Retractable seat belt
- Swivel seat lock
- Non-skid footrest
*Stairlift model shown on video may vary.
Book a Free Home Assessment
Wondering if the Handicare 4000 fits your staircase? We'll come measure — free, no obligation.
- We come to you — a proper look at your home, stairs, or bathroom.
- You get honest advice — what fits, what doesn't, and what funding may apply.
- No pressure — the assessment is free and the decision is yours.
Or call the showroom: 519 904 4932 · Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm
Message sent — thank you!
We usually reply the same business day. Need us sooner? Call 519 904 4932.
Handicare 4000

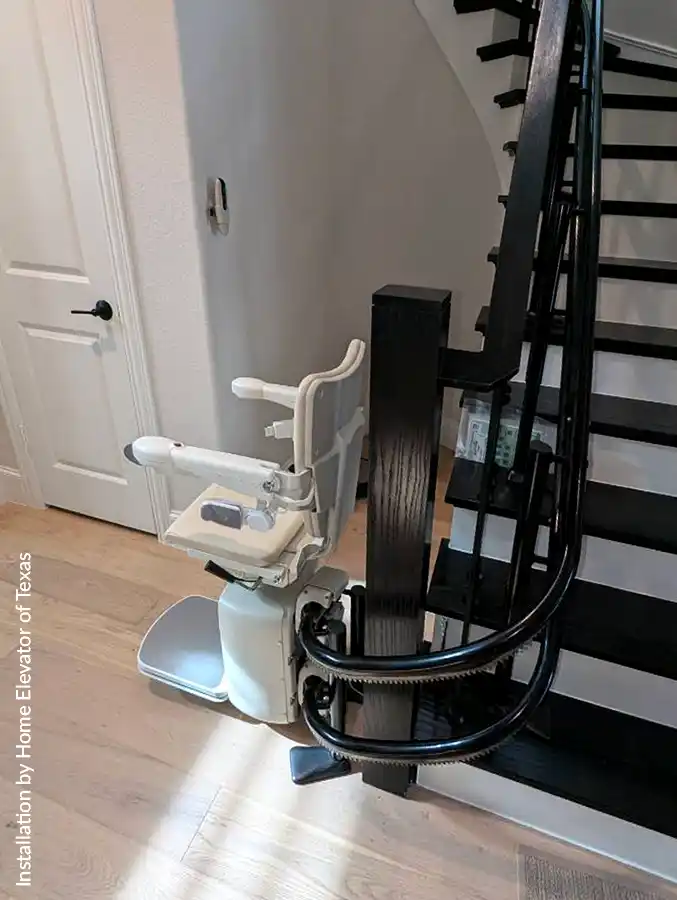

See Handicare 4000 stairlift installations
Click any photo to enlarge. Galleries may show configurations or features that vary by region and installation.
Handicare 4000 Documents
Worried about the cost?
Between provincial, federal and charitable funding programs available in Ontario, a stairlift is often more affordable than people expect. We'll walk you through what applies to you.
See funding optionsNeed a straight stairlift?
If your staircase is a single straight flight, a straight lift installs faster and simpler — see the straight line-up.
See Straight Stairlifts

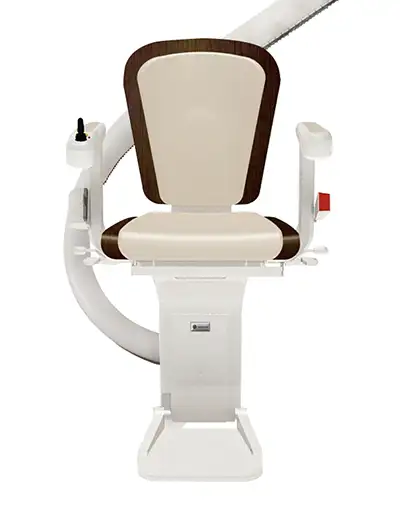

Handicare Freecurve
