SPAN Encore Bed

Model: MC9RW / MC9RZ / MC9RWZ

Savaria Patient Care

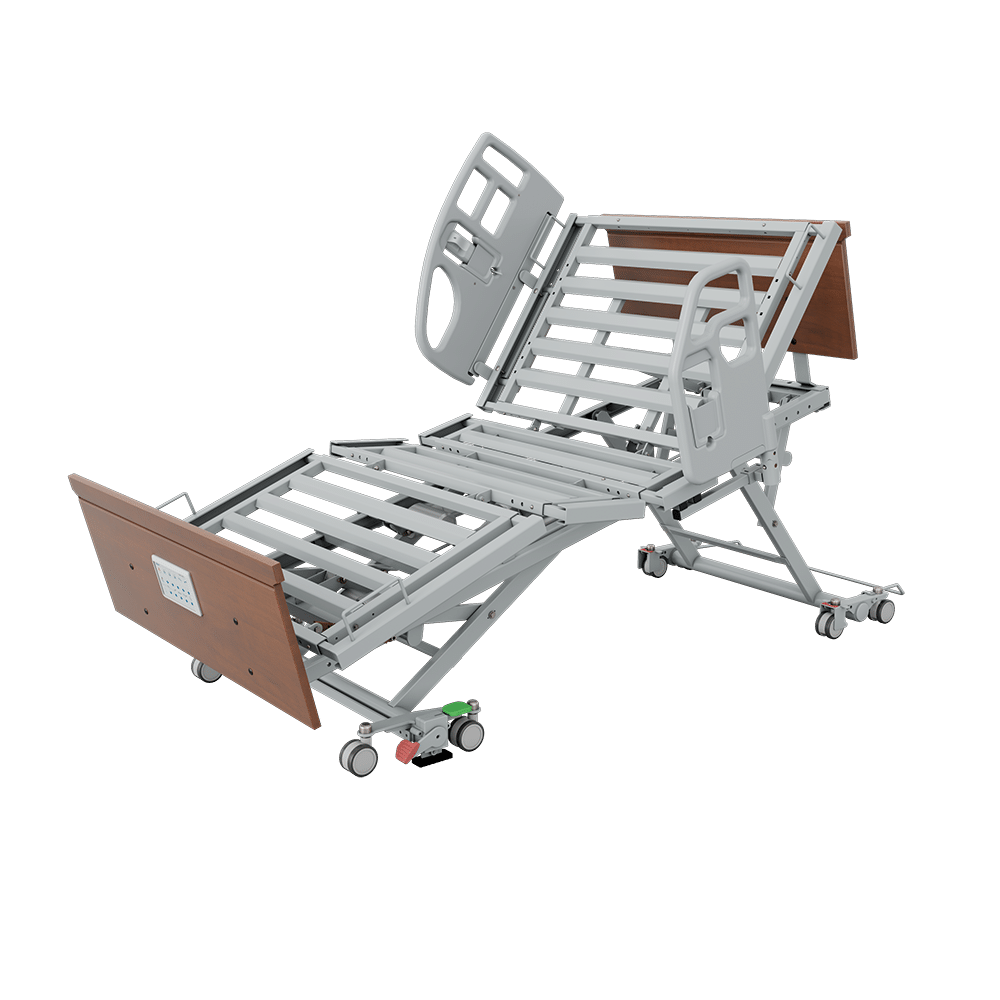

The Encore is Savaria's flagship long-term care bed, combining a Glidealign retractable deck that keeps the resident vertically aligned during height changes with two-click ReadyWide width expansion up to 42 inches. With a 600 lb working load, Smart Stop low-height auto-pause and full clinical positioning, it is built for demanding care environments.

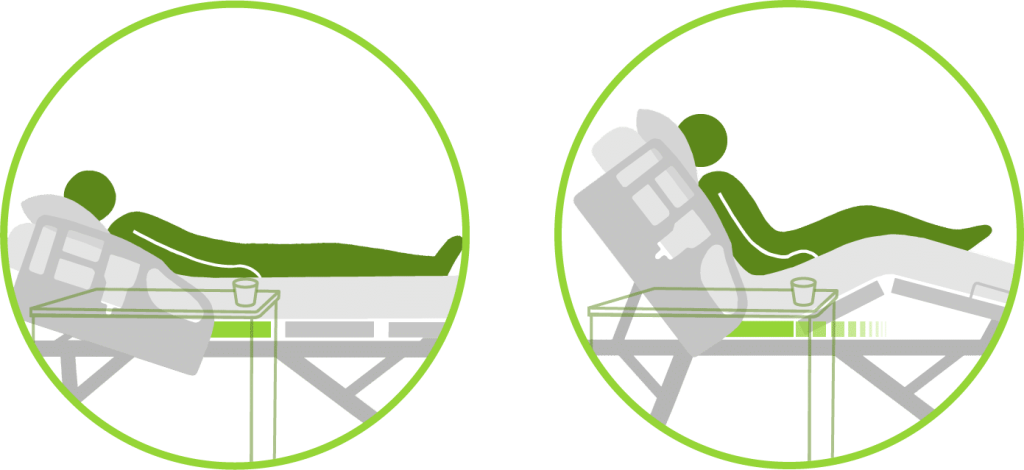

  • Glidealign retractable deck travels straight up and down, helping prevent falls and protecting skin from shearing during repositioning

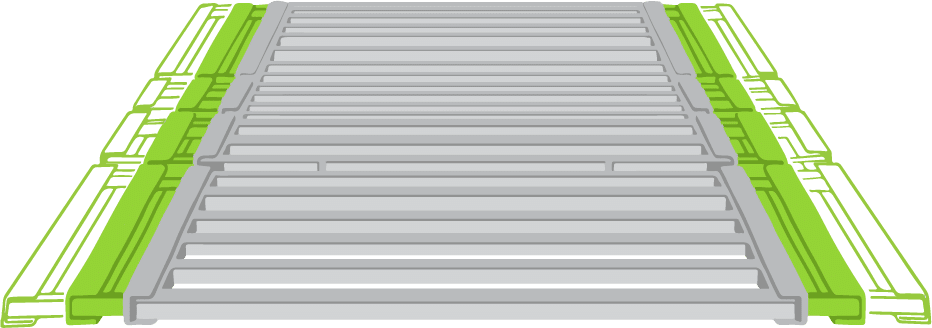

  • ReadyWide two-click expansion widens the sleep surface from 36" to 39" or 42" for safer transfers and daily care

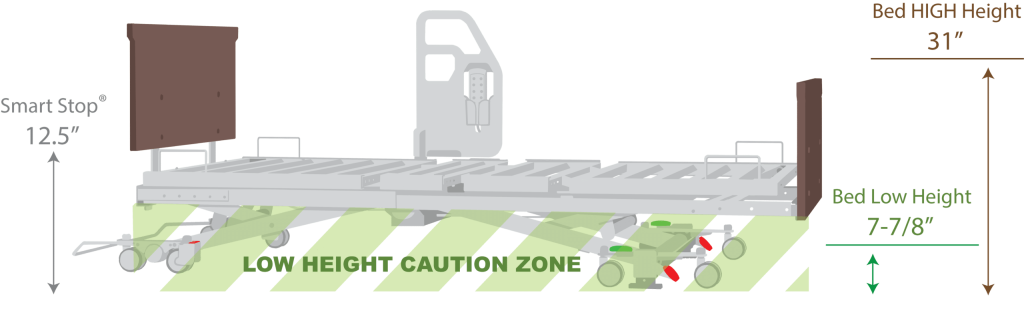

  • Smart Stop intelligently pauses the descent at a low height to guard feet and objects beneath the bed
  • Four DC linear actuators deliver hi-lo travel from 7-7/8" to 31" plus Comfort Chair, Trendelenburg and Reverse Trendelenburg positioning
  • 600 lb safe working load with 360-degree mobility and locking available at any bed height
  • Dual-position, dual-intensity under-bed lighting and washable IPX4-rated electricals suit facility cleaning routines
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Model options MC9RW (with ReadyWide), MC9RZ (built-in backup battery), MC9RWZ (ReadyWide + backup battery)
Height, floor to mattress support 7-7/8" – 31" (200 – 787 mm)
Back elevation 0 – 70°
Knee elevation 0 – 30°
Overall bed length 82", 86" or 90" (2083, 2184, 2286 mm)
Sleep surface length 76", 80" or 84" (84" requires 4" bed extender kit)
Sleep surface width 36", 39" or 42" (889, 991, 1067 mm)
Width with side rails 40-1/2", 43-1/2" or 46-1/2" (1029, 1105, 1181 mm)
Deck retraction travel 12" (305 mm)
Safe working load 600 lb (272 kg)
Bed weight (without accessories) 253 lb (115 kg)
Electric motors Four DC self-lubricating linear actuators
Positioning functions Hi-lo, auto-contour, Comfort Chair, Trendelenburg / Reverse Trendelenburg, Smart Stop low-height pause

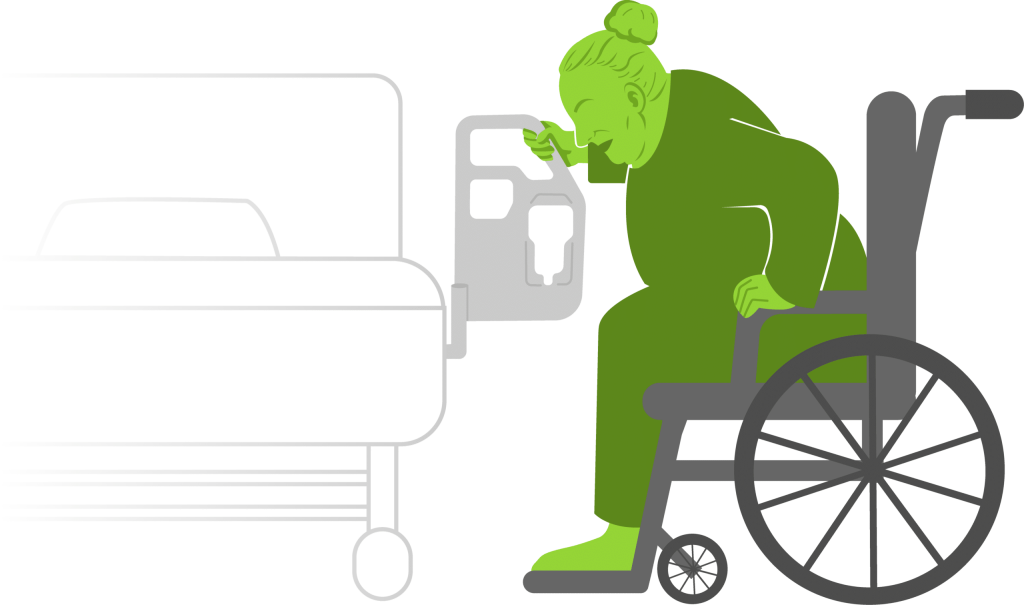

Side rail / assist options Ergonomic 3-position side assist rail, molded half-head assist rails, split side rails, quick-adjust pivot assist rails
Bed end panels Permanent or removable mounting; five wood finishes and four board profiles
Ingress protection IPX4 (electrical components IP66)
Warranty 5 years mechanical, 10 years frame, 15 years welds
Certifications ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, 60601-2-52:11, 60601-1-2-08 (EMC)
