SPAN ReadyWide

Model: MC7W / MC7WM / MC7WL / MC7WML / MC7WPML

Savaria Patient Care

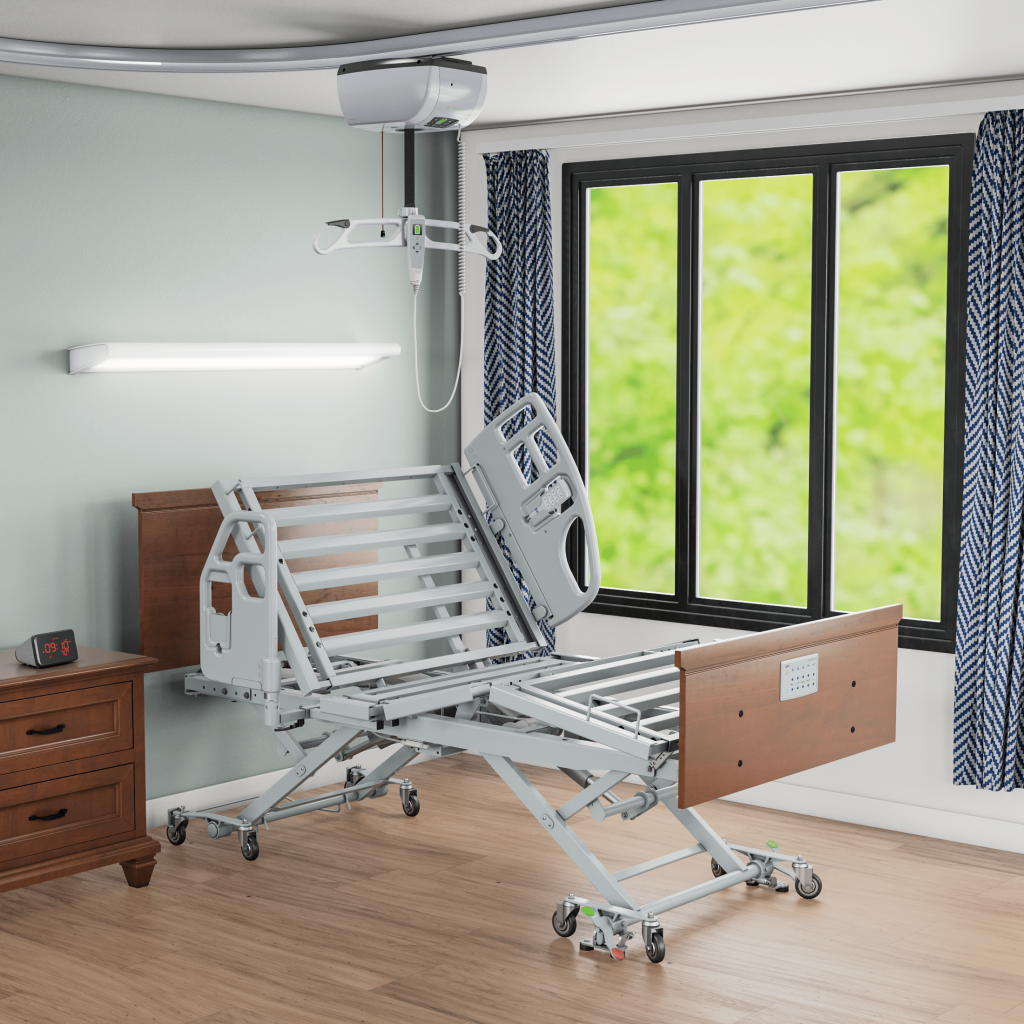

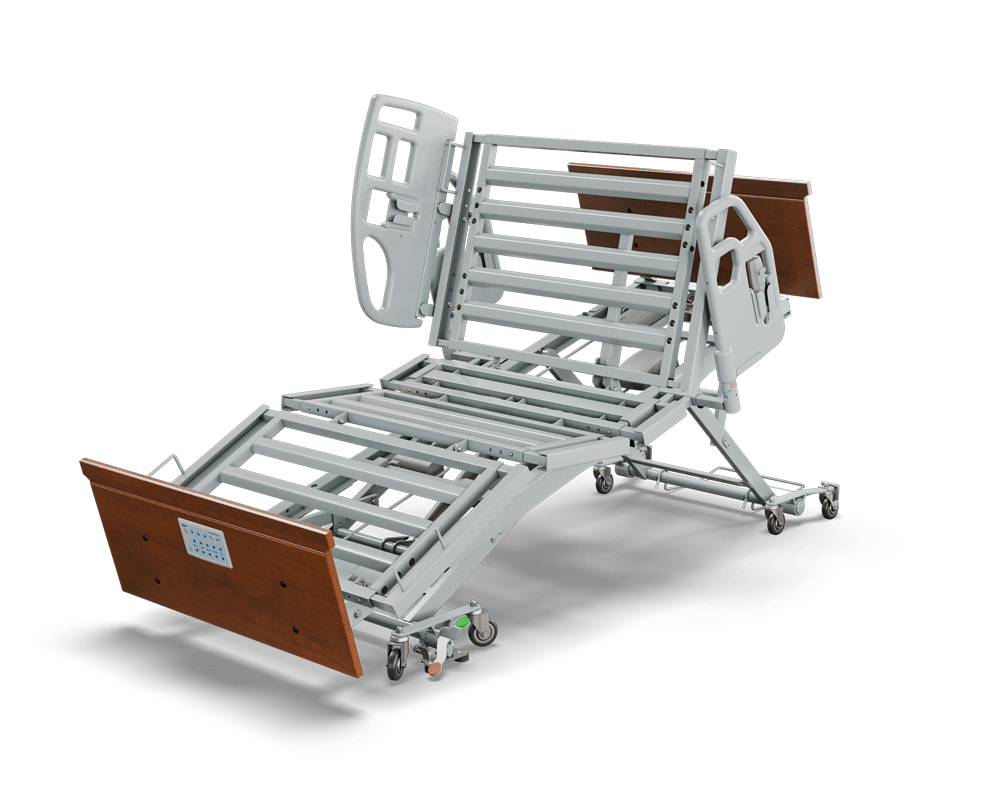

The ReadyWide is a low electric care bed whose built-in expander clicks the sleep surface out from 35 inches to 39 or 42 inches, so one frame can pass through narrow doorways yet widen for transfers and daily care. A Plus version raises the safe working load from 500 lb to 650 lb, and Smart Stop halts lowering at 12.5 inches from the floor for added safety.

  • Integrated two-click expander takes the sleep deck from 35" out to 39" or 42" with no tools or add-on kits
  • Smart Stop automatically pauses descent 12.5" from the floor, discouraging unsafe exits and protecting anything below the bed
  • Low 7-7/8" deck height rising to 31" gives both a fall-reducing sleeping position and an ergonomic caregiving height

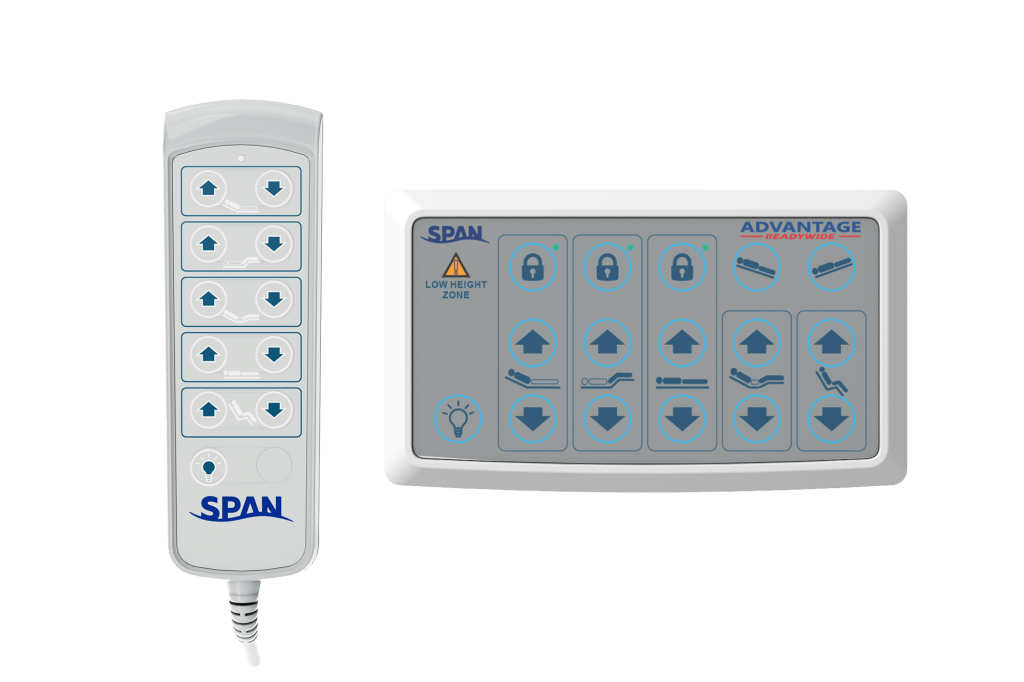

  • Foot-end controls with staff lockout drive Comfort Chair, Trendelenburg and Reverse Trendelenburg positioning
  • Plus model (MC7WPML) increases safe working load to 650 lb versus 500 lb on the standard build
  • Trapezoidal steel slat deck with antimicrobial-coated vascular footrest is strong, ventilated and easy to clean
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Model options MC7W (foot-end controls), MC7WM (+mobility), MC7WL (+floor lock), MC7WML (mobility + floor lock), MC7WPML (Plus, 650 lb SWL)
Height, floor to mattress support 7-7/8" – 31" (200 – 787 mm)
Back elevation 0 – 70°
Knee elevation 0 – 30°
Overall bed length 82", 86" or 90" (2083, 2184, 2286 mm)
Sleep surface length 76", 80" or 84" (1930, 2032, 2134 mm)
Sleep surface width 35", 39" or 42" (889, 991, 1067 mm)
Safe working load 500 lb (227 kg) standard; 650 lb (295 kg) Plus model
Bed weight (without accessories) 259 lb (118 kg) standard; 270 lb (123 kg) Plus
Positioning functions Hi-lo, auto-contour pendant, Comfort Chair, Trendelenburg / Reverse Trendelenburg, Smart Stop pause at 12.5" (318 mm)
Side rail / assist options Ergonomic 3-position side assist rail, molded quick-release half-head rails, split side rail, pivot assist rails
Mobility options Advanced 360° mobility with locking at any height; floor lock and transport dolly options
Backup battery options Q6701 (standard model), Q6770 (Plus model), factory installed
Warranty 5 years mechanical, 10 years frame, 15 years welds
Certifications ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, 60601-2-52:11, 60601-1-2-08 (EMC)
