SPAN Weigh Scale Bed

Model: MC7WSML / MC7WSTML / MC7WSP

Savaria Patient Care

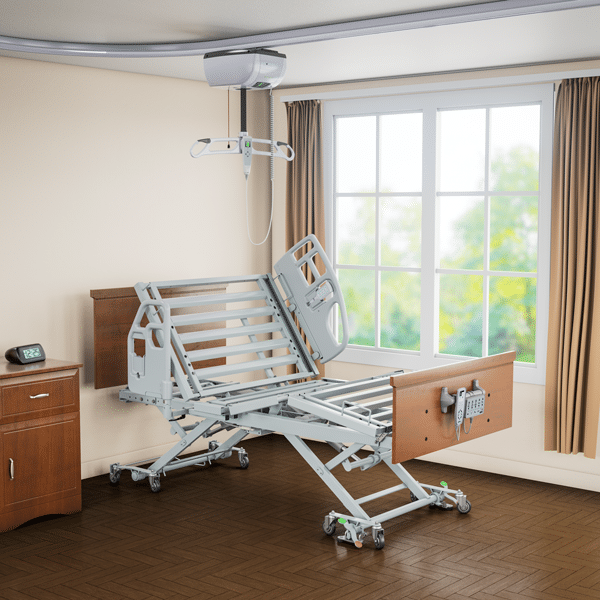

This bed builds an in-frame weigh scale into the ReadyWide platform, letting staff record a resident's weight without a transfer while keeping two-click width expansion to 42 inches, Smart Stop low-height protection and full clinical positioning. Standard and 650 lb Plus capacities are offered, with optional nurse call connectivity.

  • Integrated weigh scale with its own independent pendant lets caregivers operate the scale from anywhere around the bed
  • Carries the ReadyWide two-click expansion, widening the deck from 36" to 39" or 42" for transfers and care tasks
  • Smart Stop halts lowering 12.5" from the floor and flashing indicators warn when the bed is in the low zone
  • Comfort Chair, Trendelenburg and Reverse Trendelenburg positioning with rapid head-deck lowering for urgent treatment
  • Choice of 500 lb standard or 650 lb Plus safe working load
  • Optional nurse call system connectivity plus 360° mobility with locking at any height
Get More Info

Call For Assistance

Every installation is different, so we quote each one properly. Give us a call and we'll talk you through the options.

Mon–Fri 8am–7pm · Sat 10am–5pm · Sun Noon–5pm

Specifications

Model options MC7WSML (standard foot-end controls), MC7WSTML (premium foot-end controls), MC7WSP (Plus model) — all with ReadyWide, mobility and floor lock
Height, floor to mattress support 8-5/8" – 32-1/4" (219 – 819 mm)
Back elevation 0 – 70°
Knee elevation 0 – 30°
Overall bed length 82", 86" or 90" (2083, 2184, 2286 mm)
Sleep surface length 76", 80" or 84" (84" requires 4" bed extender kit)
Sleep surface width 36", 39" or 42" (889, 991, 1067 mm)
Safe working load 500 lb (227 kg) standard; 650 lb (295 kg) Plus model
Bed weight (without accessories) 297 lb (135 kg) standard; 301 lb (137 kg) Plus

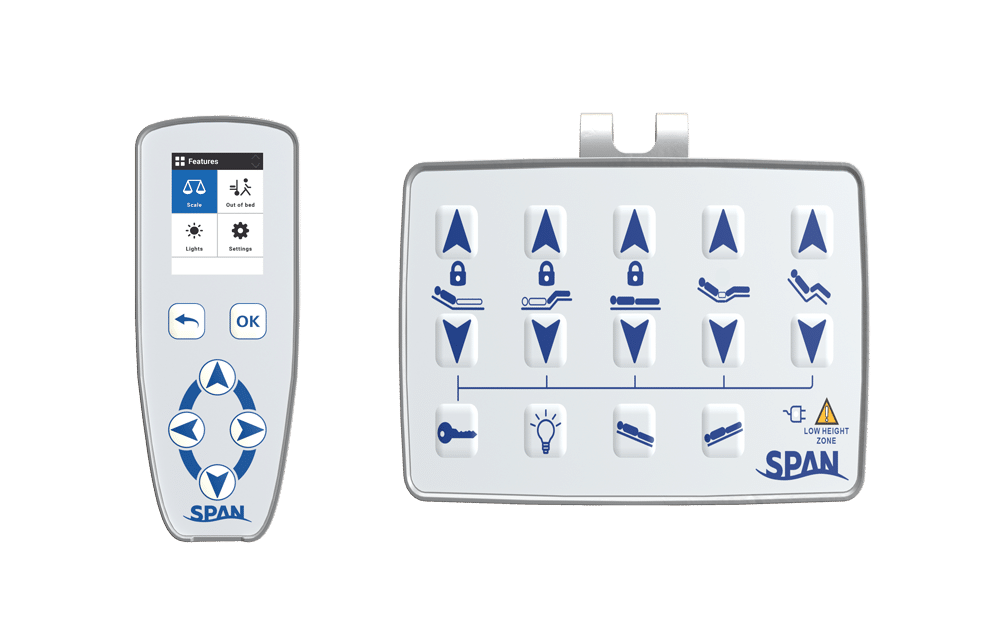

Scale operation Dual controllers including an independent weigh scale pendant usable around the bed
Positioning functions Hi-lo, Comfort Chair, Trendelenburg / Reverse Trendelenburg, rapid head-deck lowering, Smart Stop pause at 12.5" (318 mm)
Side rail / assist options 3-position assist device, molded half-head assist rails

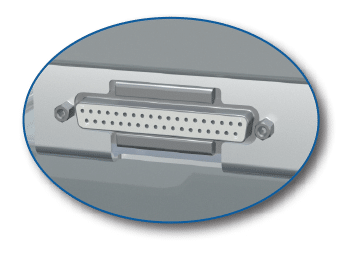

Connectivity Optional nurse call system port
Warranty 5 years mechanical, 10 years frame, 15 years welds
Certifications ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, 60601-2-52:11, 60601-1-2-08 (EMC)
